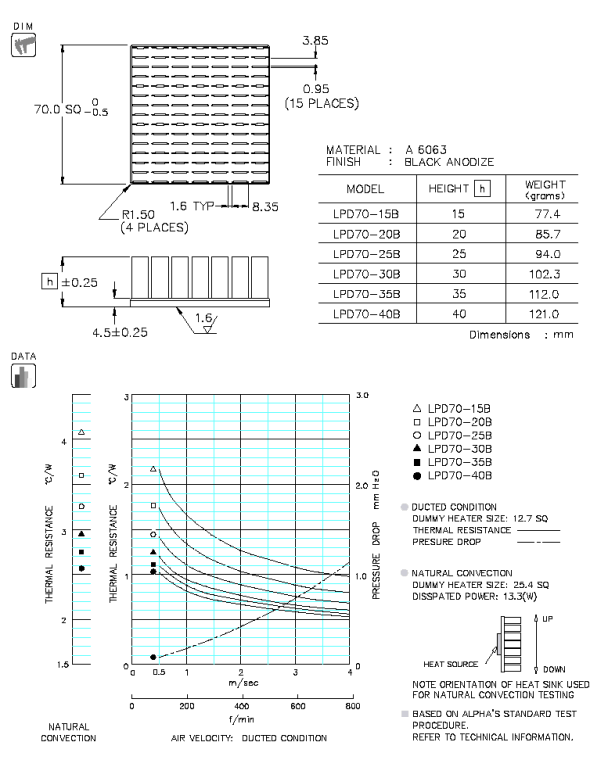

| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| LPD70-15B | 15 | 4.5 | 77.4 |
  RoHS  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| LPD70-20B | 20 | 85.7 | STEP | IGES | ||||||
| LPD70-25B | 25 | 94.0 | STEP | IGES | ||||||
| LPD70-30B | 30 | 102.3 | STEP | IGES | ||||||
| LPD70-35B | 35 | 112.0 | STEP | IGES | ||||||
| LPD70-40B | 40 | 121.0 | STEP | IGES | ||||||
Dimension :mm
