LGA775 Heat Sink (Pentium 4)

RoHS PRE9060 for Pentium4 ( LGA775 ) , Core 2 Duo
PRE9060 Picture PRE9060 Picture
Thermal Resistance
PRE9060M92P <FAN : Expulsion> BAR for 0.219 0.219 deg C/W
PRE9060M93 <FAN : Expulsion> BAR for 0.280 0.280 deg C/W
Test Conditions ; Dummy Heater Size: 31mm sq.

Model Name
Perts List PRE9060M92P PRE9060M93 PRE9060T
Heat Sink
PRE9060A		 Included Included Included

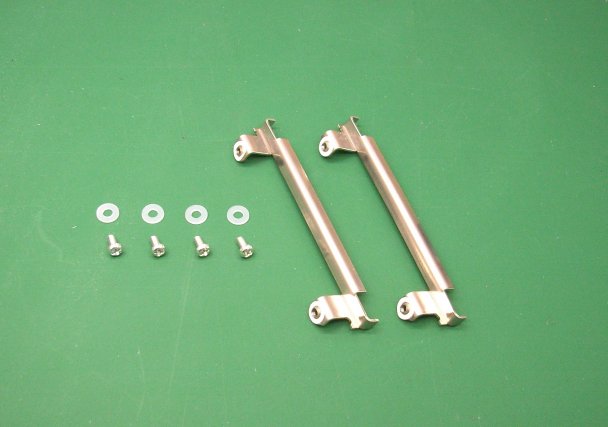

Attachment
FLG775 PARTS-SET		 Included Included Included

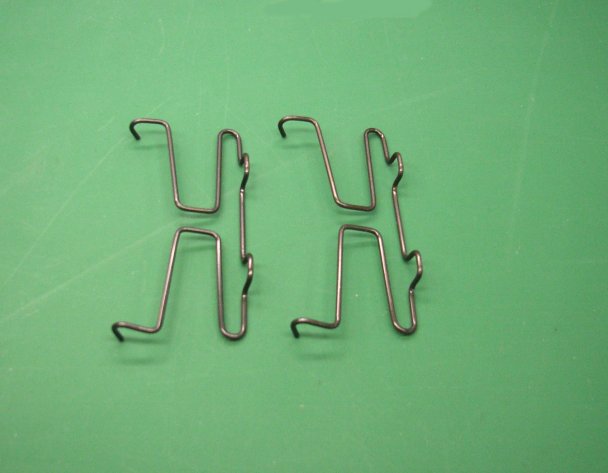

CLIP
PRECL/S		 Included Included Included
Fan M92P M93
(Quiet Fan.)		 NOT INCLUDED
Intake Cover
CT9028		 Included Included Included
Others
(Screw *1, Washer)		 Included Included Included
Thermal Grease
YG6260-5		 Included Included NOT INCLUDED
Total Weight 990g 990g 830g
Dimension / Test Data / Order PRE9060M92P PRE9060M93 -
Installation Guide PDF file ( X001ZF28.pdf 233KB )

!

The PRE9060 heatsink exceeds Intel specifications for both weight and size, so please ensure that it is suitable for your aplication.
*1 M3x85 4pcs (screws for 25mm thick fan) are included with each PRE9060.
