| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | |||
|---|---|---|---|---|---|---|---|---|
| CN50-15B | 15 | 3.5 | 24.8 |
  RoHS  REACH  DXF |
STEP | IGES |
Quantity
pcs.
|
|
| CN50-20B | 20 | 27.3 | STEP | IGES | ||||
| CN50-25B | 25 | 29.8 | STEP | IGES | ||||
| CN50-30B | 30 | 32.4 | STEP | IGES | ||||
| CN50-35B | 35 | 34.9 | STEP | IGES | ||||
| CN50-40B | 40 | 37.4 | STEP | IGES | ||||
| CN50-45B | 45 | 40.0 | STEP | IGES | ||||

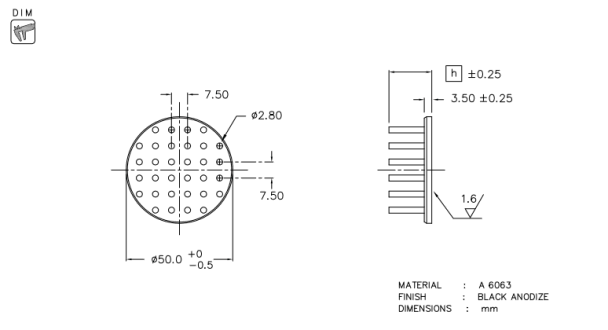

Dimension :mm
