| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | |||
|---|---|---|---|---|---|---|---|---|
| CN60-15B | 15 | 4.0 | 40.0 |
  RoHS  REACH  DXF |
STEP | IGES |
Quantity
pcs.
|
|
| CN60-20B | 20 | 44.2 | STEP | IGES | ||||
| CN60-25B | 25 | 48.3 | STEP | IGES | ||||
| CN60-30B | 30 | 52.5 | STEP | IGES | ||||
| CN60-35B | 35 | 56.6 | STEP | IGES | ||||
| CN60-40B | 40 | 60.8 | STEP | IGES | ||||
| CN60-45B | 45 | 64.9 | STEP | IGES | ||||

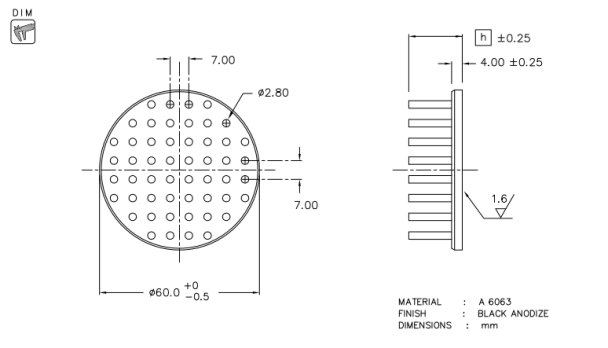

Dimension :mm
© 2009 Alpha Novatech, Inc.
