FSP40

FSP40 SPECIFICATION & THERMAL DATA

Model Name :
FSP40-
B
M31
-
Heat Sink Height (h)
8 mm
10 mm
12 mm
15 mm
20 mm
25 mm
Fan
 M31
 No fan required
  • For ordering of individual components, such as push pins or springs, please visit each link/page.
  Push pins Springs
-- -------- -------- -- --------
No pushpin and spring required
 Thermal Interface
-- --
No thermal interface required

Note

The thermal interface materials listed here are phase change materials (PCMs). These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen. In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below). Storage and Handling Instruction

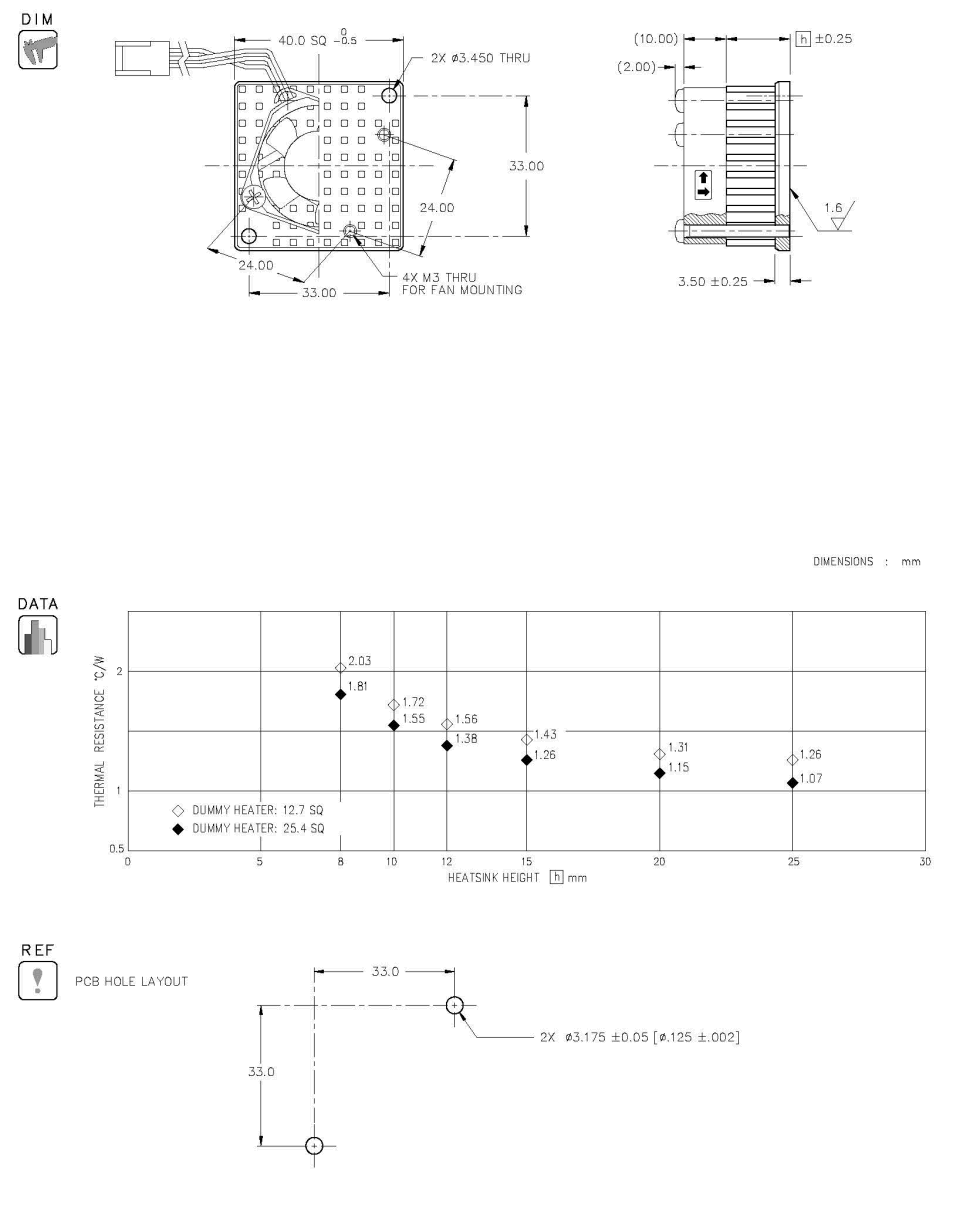

Dimension and Thermal Data
  • HEAT SINK
    MATERIAL : A6063
    FINISH : BLACK ANODIZE
  • FAN
    M31 : COFAN F-3010H12BIII-16
    30 SQ +0.5/-0, 10 +0.5/-0 THK
  • SCREW (QTY 3) PAN HEAD PHILLIPS M3 STEEL Cr3+
HEATSINK ONLY
HEATSINK HEIGHT (h) WEIGHT (grams)
8.00 16.4
10.00 17.4
12.00 18.3
15.00 19.7
20.00 22.0
25.00 24.4
HEATSINK AND FAN ASSEMBLY
MODEL WEIGHT (grams)
FSP40-8M31 28.6
FSP40-10M31 29.8
FSP40-12M31 31.0
FSP40-15M31 32.8
FSP40-20M31 35.7
FSP40-25M31 38.7
