LC100

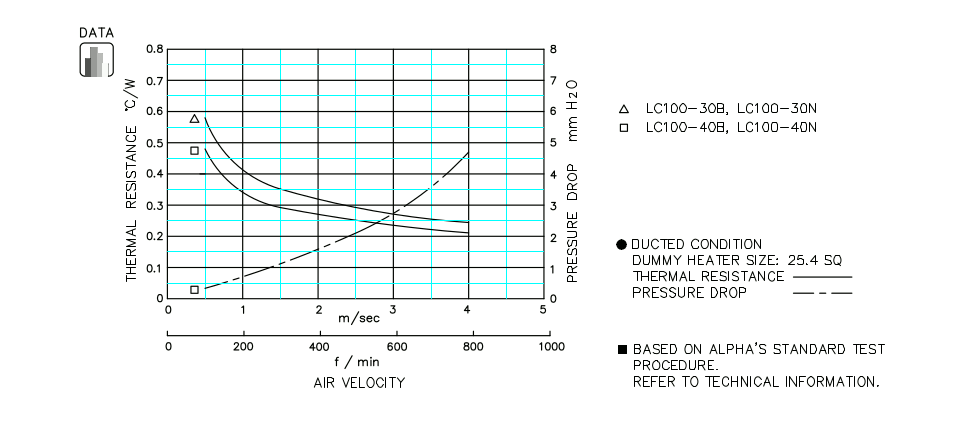

LC100 SPECIFICATION & THERMAL DATA

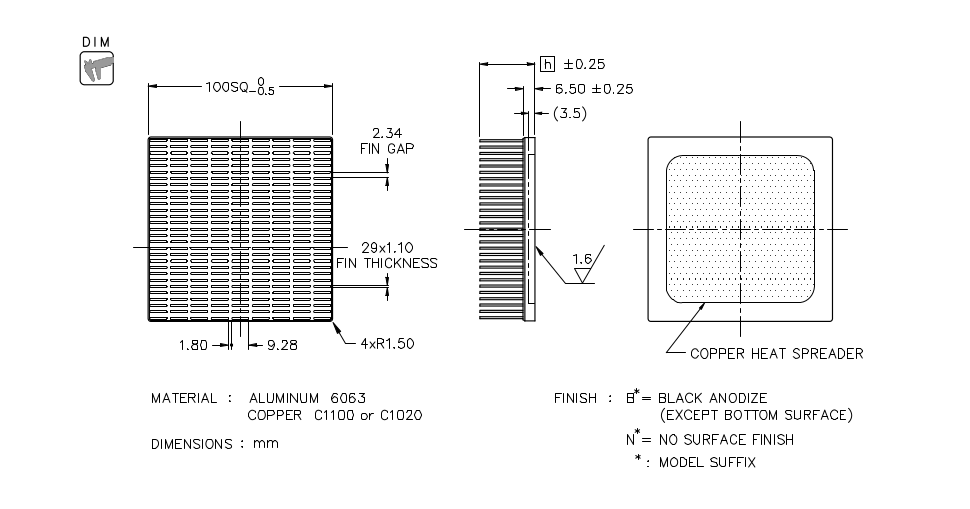

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order
LC100-30B 30 6.5 445.5 catalog

DXF

RoHS

REACH

STEP IGES
Quantity
+
LC100-40B 40 518.1 STEP IGES
Specification
