LPD15

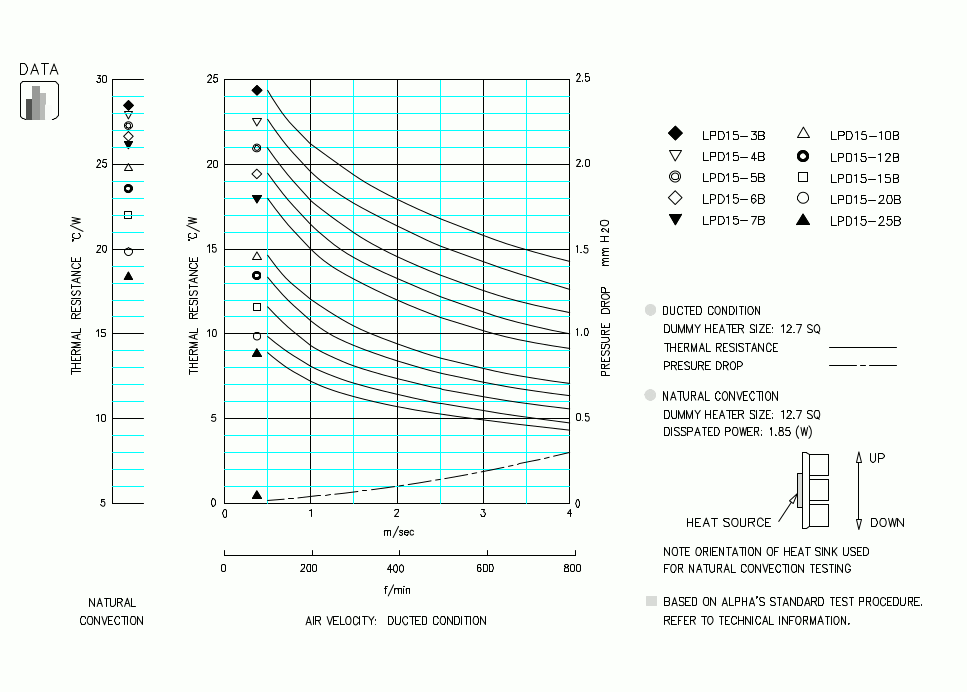

LPD15 SPECIFICATION & THERMAL DATA

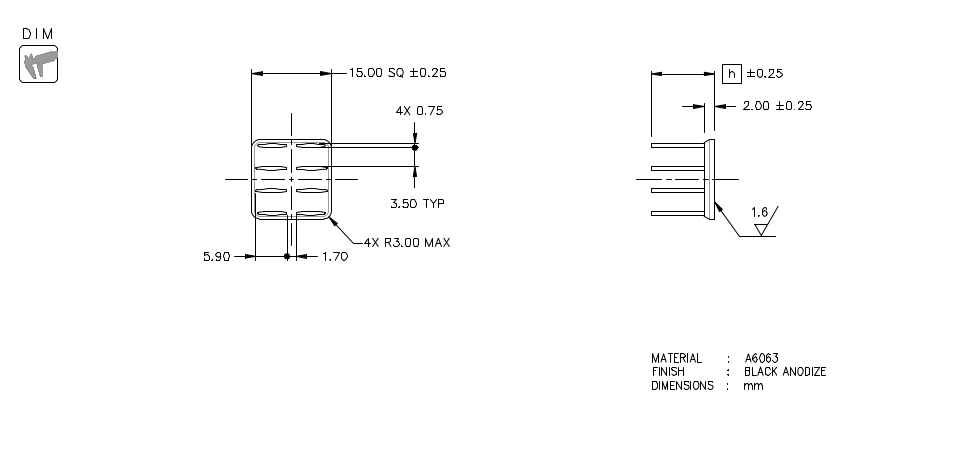

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
LPD15-3B 3 2.0 1.2 catalog

DXF

REACH

RoHS
STEP IGES
Quantity
+
LPD15-4B 4 1.3 STEP IGES
LPD15-5B 5 1.4 STEP IGES
LPD15-6B 6 1.5 STEP IGES
LPD15-7B 7 1.5 STEP IGES
LPD15-10B 10 1.8 STEP IGES
LPD15-12B 12 1.9 STEP IGES
LPD15-15B 15 2.2 STEP IGES
LPD15-20B 20 2.5 STEP IGES
LPD15-25B 25 2.9 STEP IGES
Select Height
---
---

Specification
