LPD17

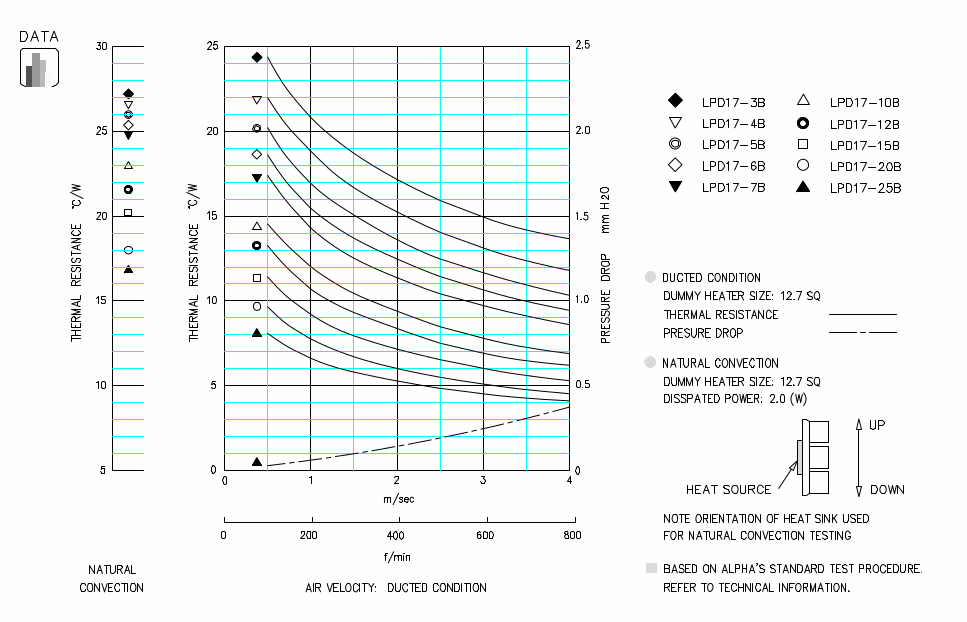

LPD17 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD17-3B 3 2.0 1.6 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD17-4B41.7STEPIGES
LPD17-5B51.8STEPIGES
LPD17-6B61.9STEPIGES
LPD17-7B71.9STEPIGES
LPD17-10B102.2STEPIGES
LPD17-12B122.4STEPIGES
LPD17-15B152.7STEPIGES
LPD17-20B203.1STEPIGES
LPD17-25B253.5STEPIGES
Select Height
---
---

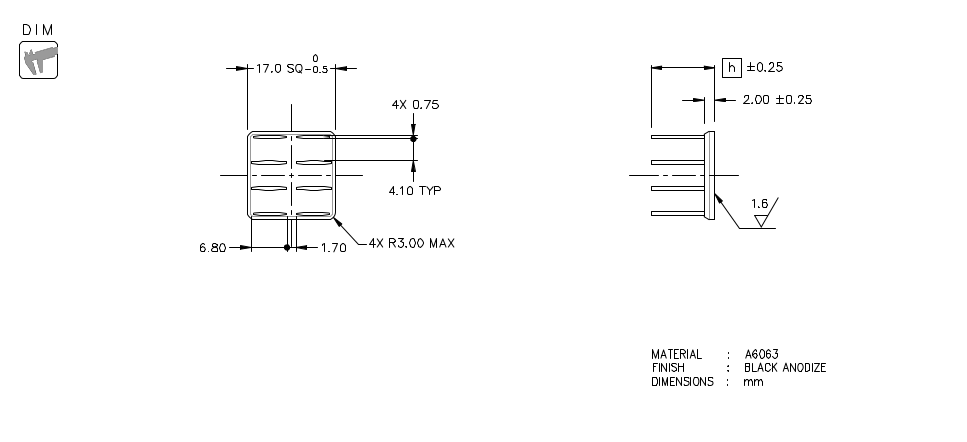

Dimension :mm

Specification
