LPD2040

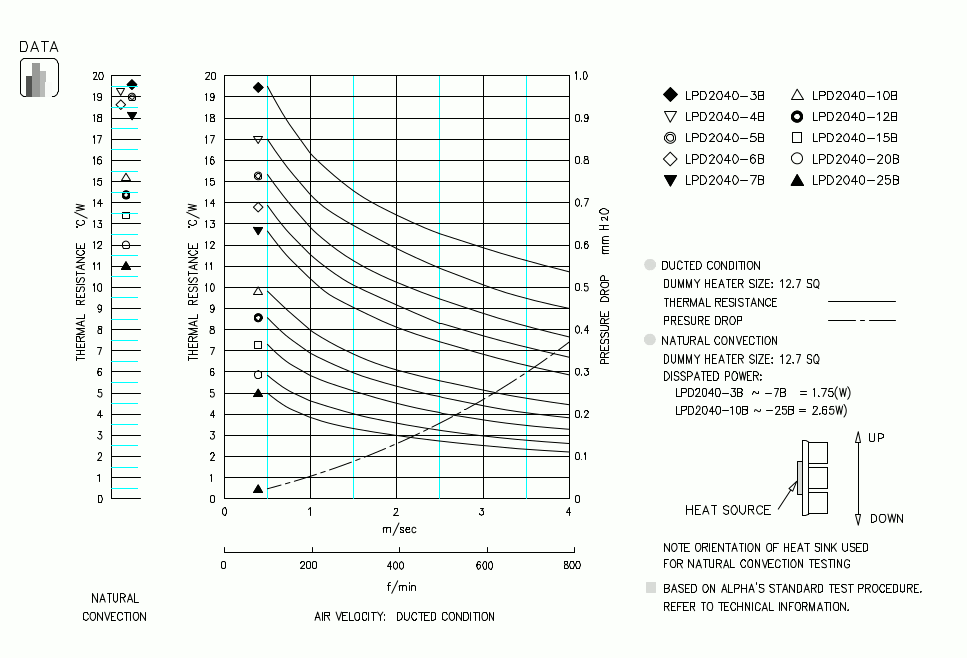

LPD2040 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD2040-3B 3 4.5 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD2040-4B 4 4.8 STEP IGES
LPD2040-5B 5 5.0 STEP IGES
LPD2040-6B 6 5.3 STEP IGES
LPD2040-7B 7 5.6 STEP IGES
LPD2040-10B 10 6.4 STEP IGES
LPD2040-12B 12 6.9 STEP IGES
LPD2040-15B 15 7.8 STEP IGES
LPD2040-20B 20 9.1 STEP IGES
LPD2040-25B 25 10.5 STEP IGES
Select Height

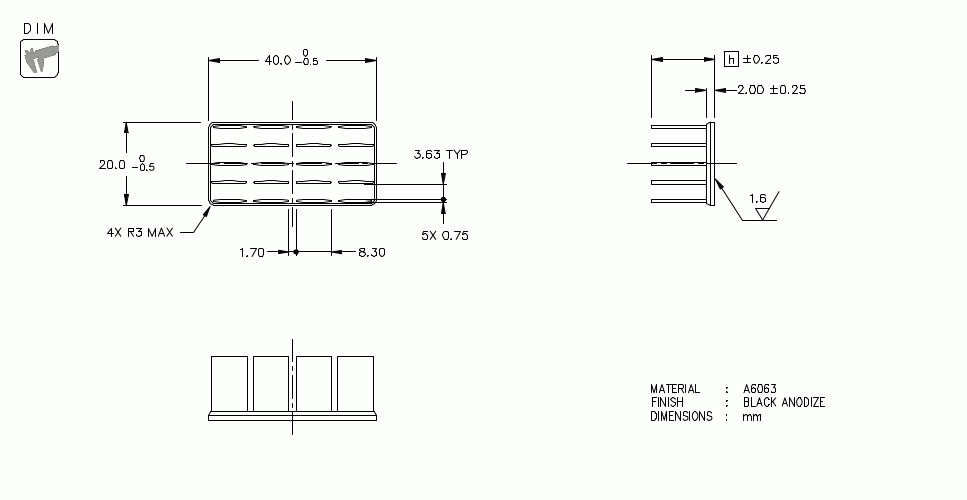

Dimension :mm

Specification
