LPD22

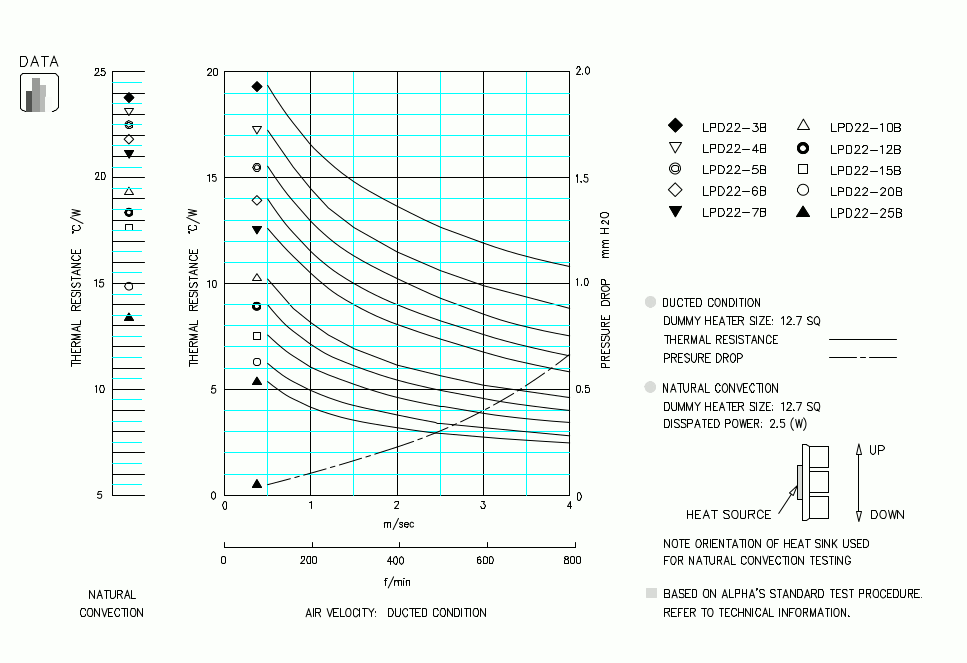

LPD22 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD22-3B 3 2.0 2.7 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD22-4B42.9STEPIGES
LPD22-5B53.1STEPIGES
LPD22-6B63.3STEPIGES
LPD22-7B73.5STEPIGES
LPD22-10B104.0STEPIGES
LPD22-12B124.4STEPIGES
LPD22-15B154.9STEPIGES
LPD22-20B205.8STEPIGES
LPD22-25B256.8STEPIGES
Select Height
---
---

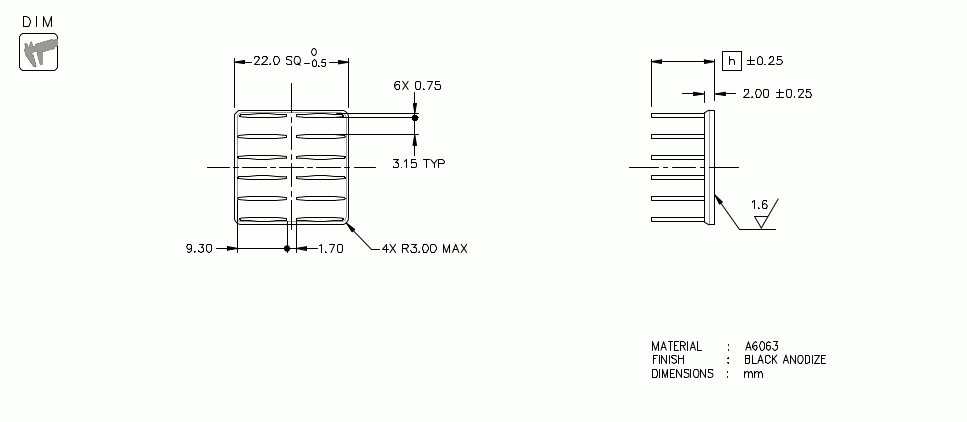

Dimension :mm

Specification
