LPD28

LPD28 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD28-3B 3 2.0 4.1 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD28-4B44.3STEPIGES
LPD28-5B54.6STEPIGES
LPD28-6B64.8STEPIGES
LPD28-7B75.0STEPIGES
LPD28-10B105.8STEPIGES
LPD28-12B126.2STEPIGES
LPD28-15B157.0STEPIGES
LPD28-20B208.2STEPIGES
LPD28-25B259.4STEPIGES
Select Height
---
---

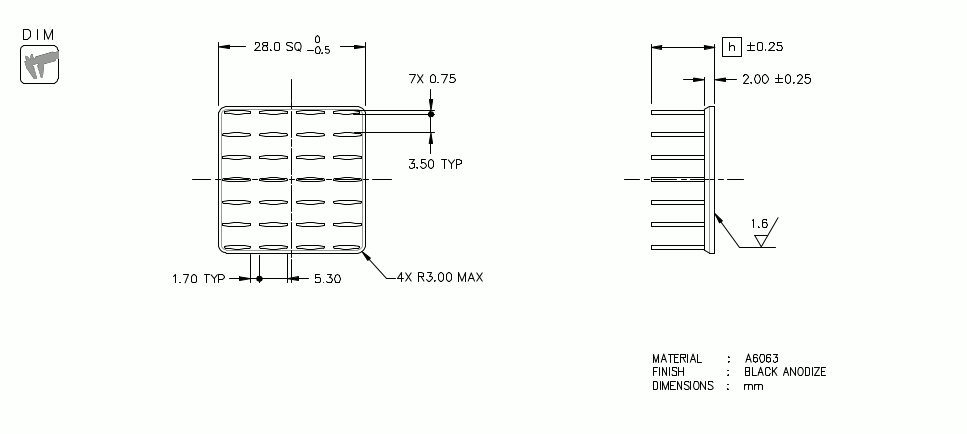

Dimension :mm

Specification
