LPD32

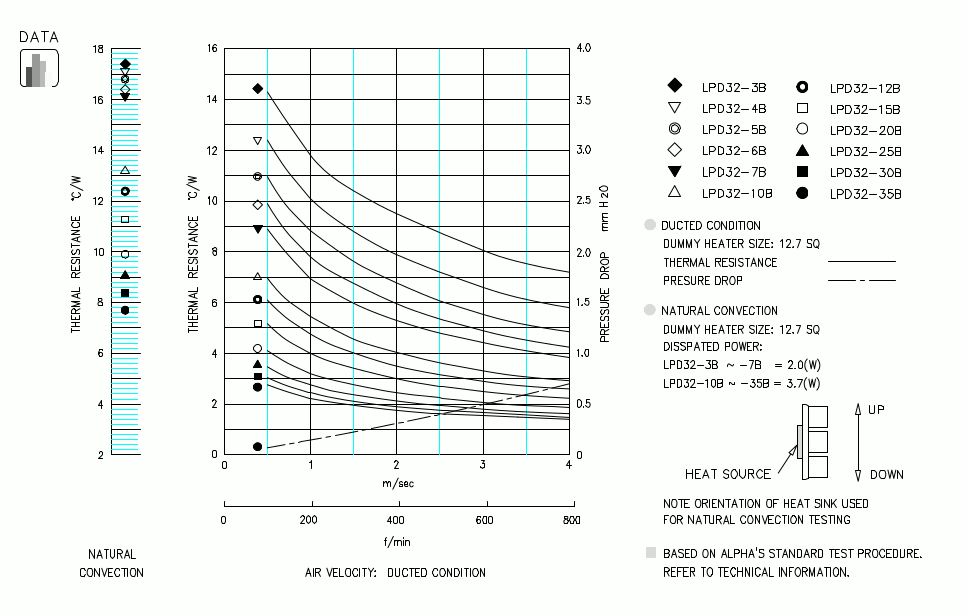

LPD32 SPECIFICATION & THERMAL DATA

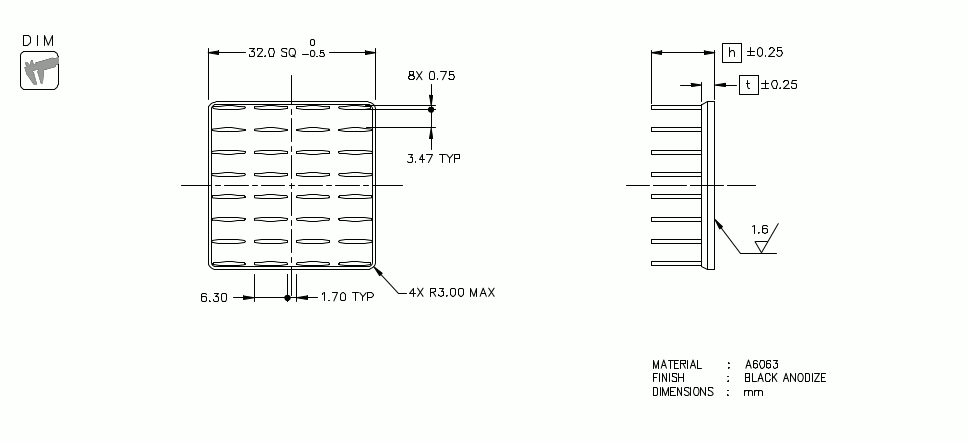

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
LPD32-3B 3 2.0 5.1 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD32-4B 4 5.5 STEP IGES
LPD32-5B 5 5.8 STEP IGES
LPD32-6B 6 6.2 STEP IGES
LPD32-7B 7 6.5 STEP IGES
LPD32-10B 10 2.5 8.3 STEP IGES
LPD32-12B 12 8.9 STEP IGES
LPD32-15B 15 9.8 STEP IGES
LPD32-20B 20 11.3 STEP IGES
LPD32-25B 25 12.8 STEP IGES
LPD32-30B 30 14.4 STEP IGES
LPD32-35B 35 15.9 STEP IGES
Select Height
---
---

Specification
