LPD4020

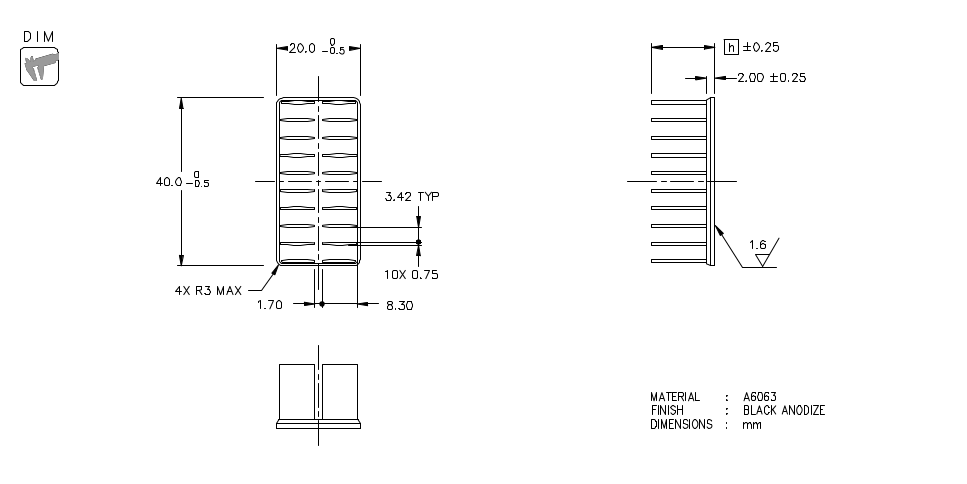

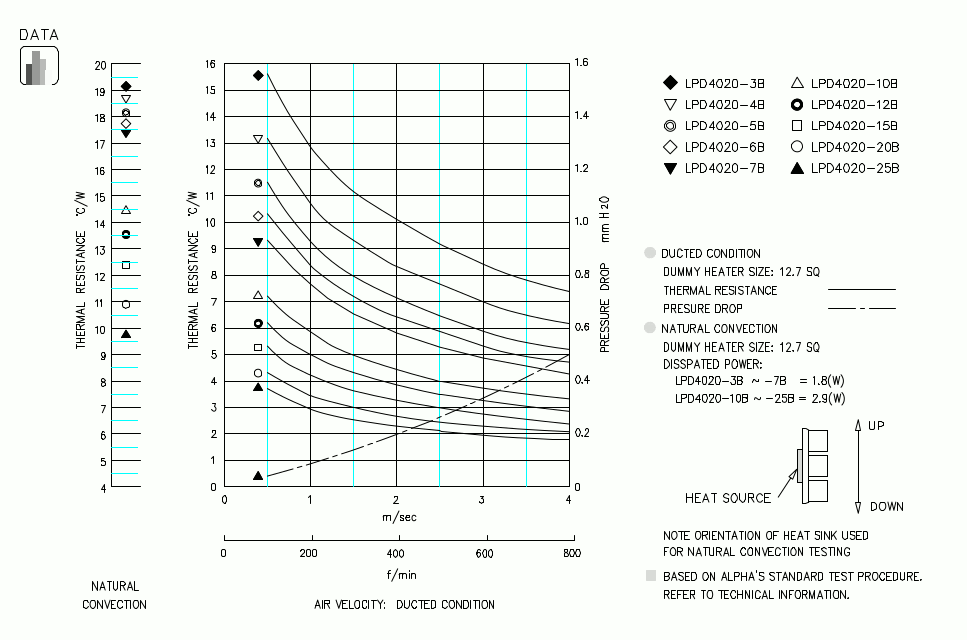

LPD4020 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Weight
(g)
Download Availability / Price / Order Option
LPD4020-3B 3 4.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD4020-4B 4 4.8 STEP IGES
LPD4020-5B 5 5.0 STEP IGES
LPD4020-6B 6 5.3 STEP IGES
LPD4020-7B 7 5.6 STEP IGES
LPD4020-10B 10 6.4 STEP IGES
LPD4020-12B 12 6.9 STEP IGES
LPD4020-15B 15 7.8 STEP IGES
LPD4020-20B 20 9.1 STEP IGES
LPD4020-25B 25 10.5 STEP IGES
Select Height

Specification
