LPD42

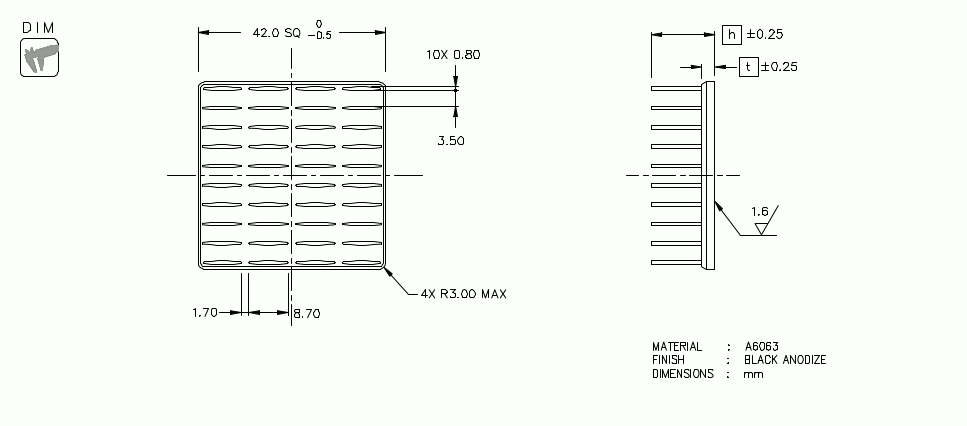

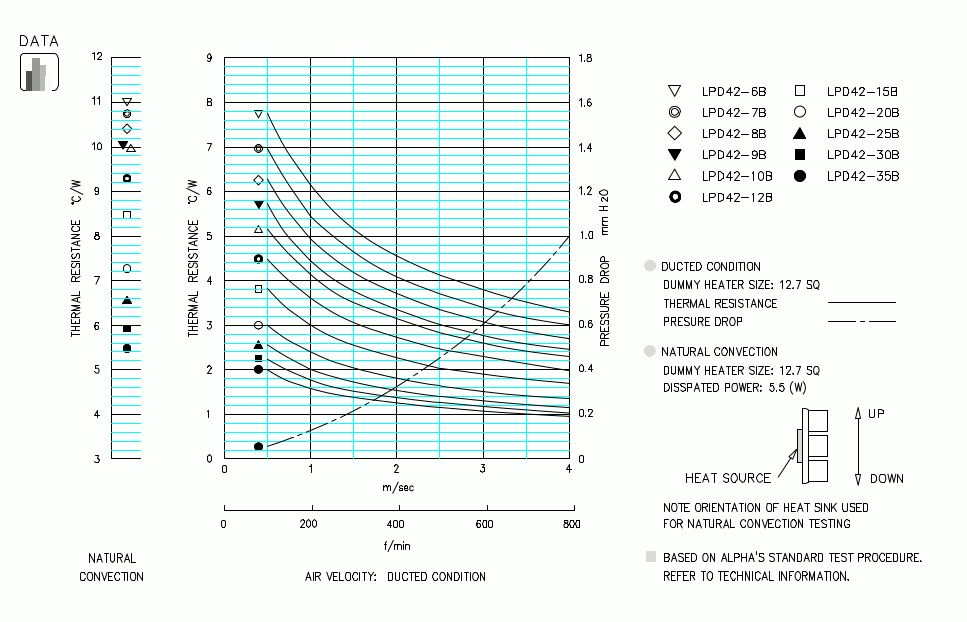

LPD42 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD42-6B 6 2.5 13.7 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD42-7B714.3 STEP IGES
LPD42-8B814.9 STEP IGES
LPD42-9B915.5 STEP IGES
LPD42-10B103.018.1 STEP IGES
LPD42-12B1219.3 STEP IGES
LPD42-15B1521.1 STEP IGES
LPD42-20B2024.1 STEP IGES
LPD42-25B2527.1 STEP IGES
LPD42-30B3030.1 STEP IGES
LPD42-35B3533.1 STEP IGES
Select Height
---
---


Dimension :mm

Specification
