LPD5070

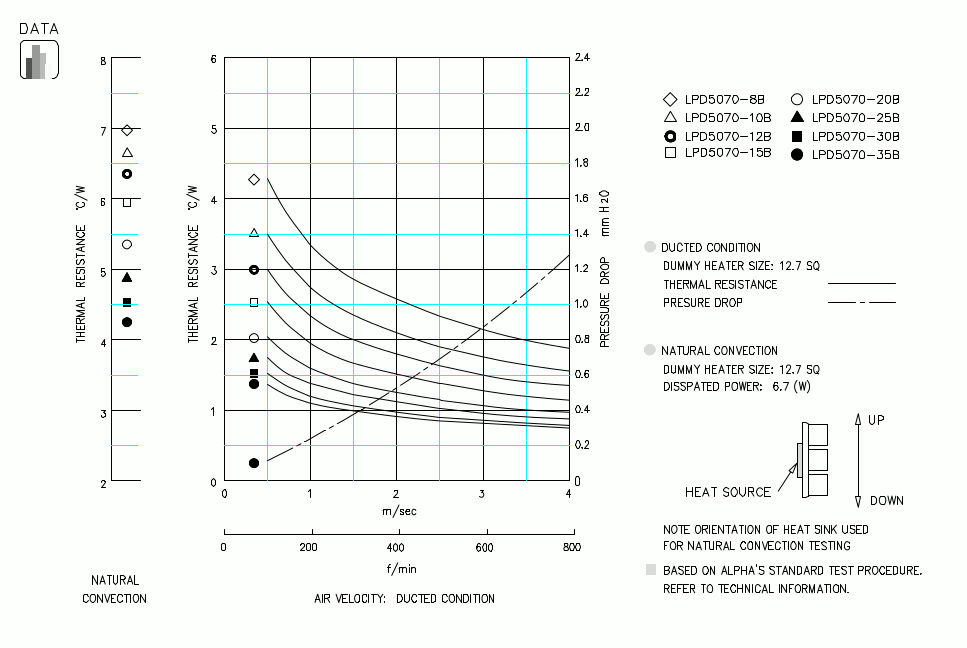

LPD5070 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
WEIGHT
(grams)
Download Price / Online Shopping Option
LPD5070-8B 8 35.2 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
Minimum Order:1 piece
Lead-time:2 weeks
Specify fin height, base size or holes/tapped holes
LPD5070-10B 10 38.1 STEP IGES
LPD5070-12B 1240.9STEP IGES
LPD5070-15B 15 45.2 STEP IGES
LPD5070-20B 20 52.3 STEP IGES
LPD5070-25B 25 59.5 STEP IGES
LPD5070-30B 30 66.6 STEP IGES
LPD5070-35B 35 73.8 STEP IGES
Select Height

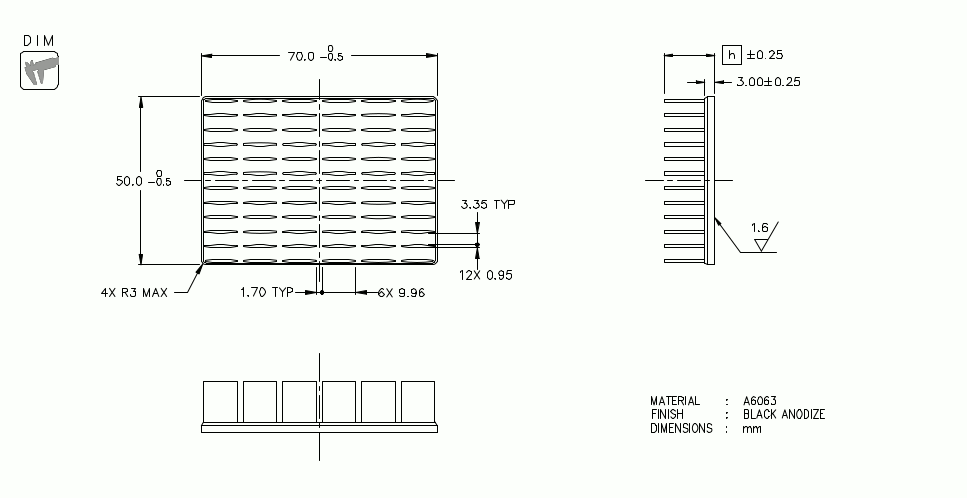

Dimension :mm

Specification
