| MODEL | HEIGHT (h) |
BASE (t) |
WEIGHT (grams) |
Download | Price / Online Shopping | Option | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| LPD70-8B | 8 | 3 | 48.1 |
  RoHS  REACH  DXF |
STEP | IGES |
Quantity
pcs.
|
Introduce attachment option for the heat sink. |
Minimum Order:1 piece Lead-time:2 weeks Specify fin height, base size or holes/tapped holes |
|
| LPD70-10B | 10 | 4.5 | 68.6 | STEP | IGES | |||||
| LPD70-12B | 12 | 72.1 | STEP | IGES | ||||||
| LPD70-15B | 15 | 77.4 | STEP | IGES | ||||||
| LPD70-20B | 20 | 85.7 | STEP | IGES | ||||||
| LPD70-25B | 25 | 94.0 | STEP | IGES | ||||||
| LPD70-30B | 30 | 102.3 | STEP | IGES | ||||||
| LPD70-35B | 35 | 112.0 | STEP | IGES | ||||||
| LPD70-40B | 40 | 121.0 | STEP | IGES | ||||||
Other height option |
--- | --- |
||||||||

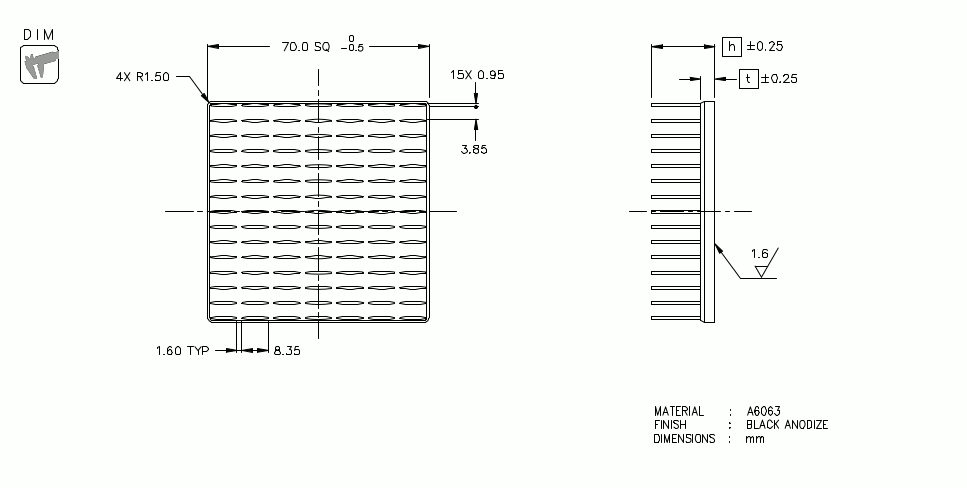

Dimension :mm
