LPD8060

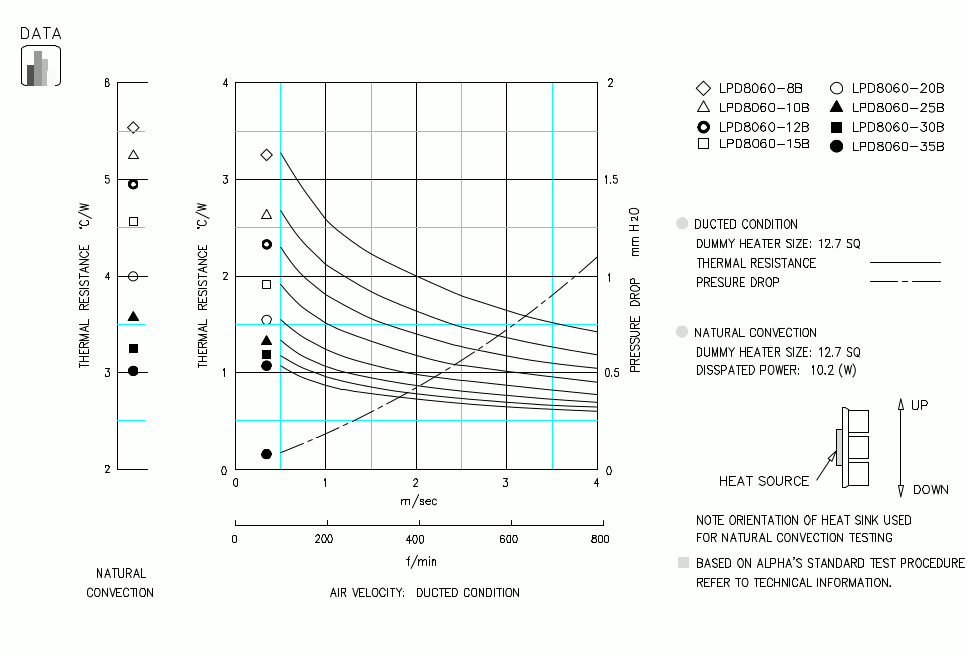

LPD8060 Specification & Thermal Data
Specification
  Model Height
h (mm)
Weight
(g)
Download Availability / Price / Order Option
LPD8060-8B 8 58.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD8060-10B 10 62.0 STEP IGES
LPD8060-12B 12 65.5 STEP IGES
LPD8060-15B 15 70.8 STEP IGES
LPD8060-20B 20 79.7 STEP IGES
LPD8060-25B 25 88.5 STEP IGES
LPD8060-30B 30 97.3 STEP IGES
LPD8060-35B 35 106.2 STEP IGES
Select Height

Specification
