LPD80

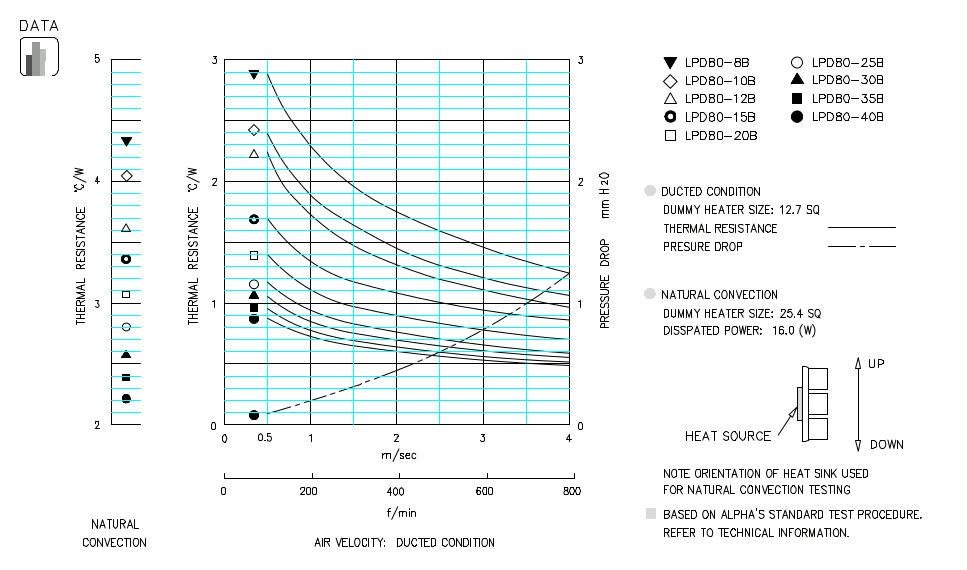

LPD80 SPECIFICATION & THERMAL DATA

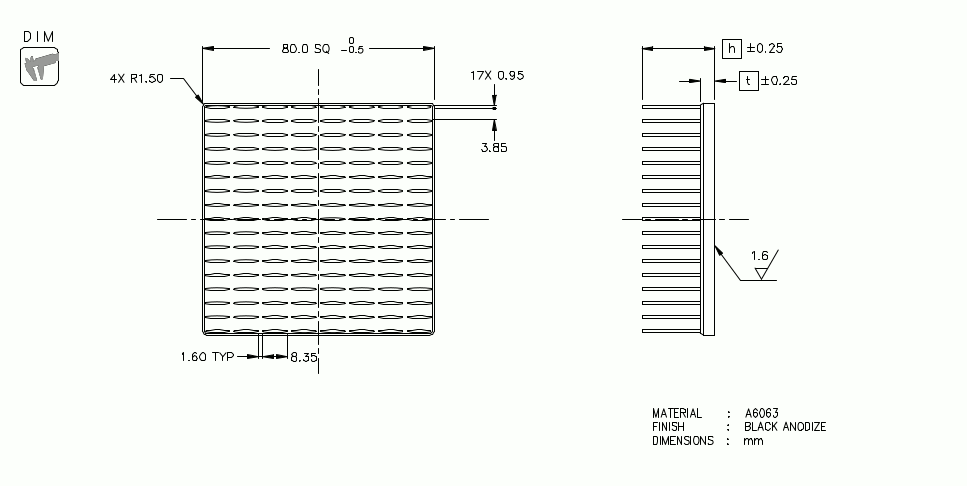

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
LPD80-12B 12 4 86.7 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LPD80-15B 15 5 108.6 STEP IGES
LPD80-20B 20 119.3 STEP IGES
LPD80-25B 25 130.0 STEP IGES
LPD80-30B 30 140.7 STEP IGES
LPD80-35B 35 152.4 STEP IGES
LPD80-40B 40 164.3 STEP IGES
Other height option
---
---

Specification
