LT13070

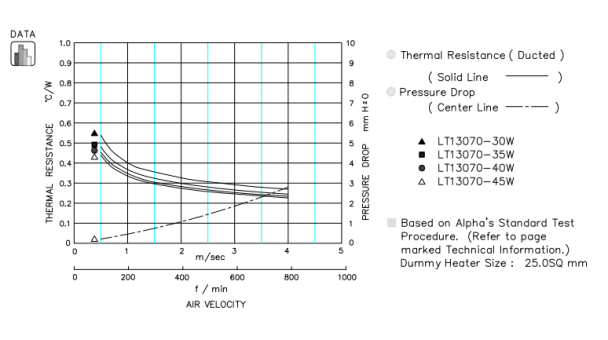

LT 13070 SPECIFICATION & THERMAL DATA

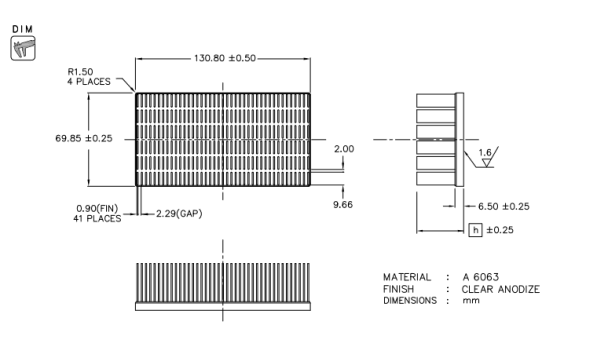

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
LT13070-30W 30 6.5 287.1 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LT13070-35W 35 314.2 STEP IGES
LT13070-40W 40 341.3 STEP IGES
LT13070-45W 45 368.4 STEP IGES
Select Height

Specification
