LT70130

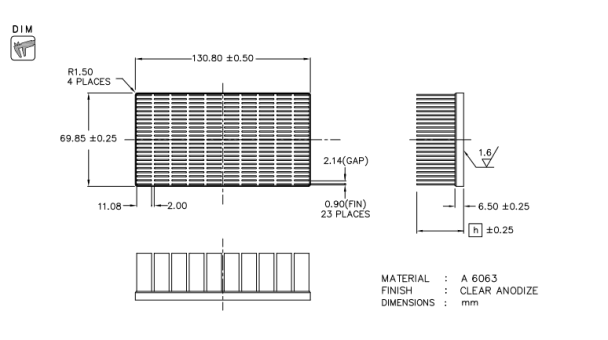

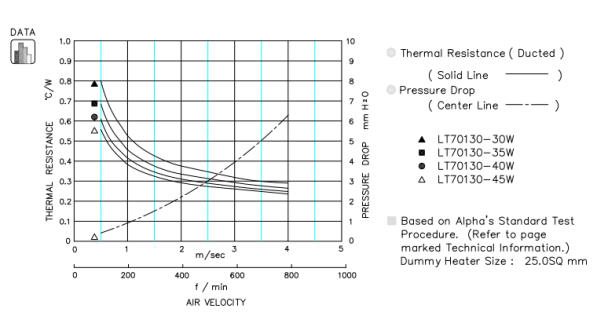

LT 70130 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
LT70130-30W 30 6.5 297.1 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LT70130-35W 35 326.3 STEP IGES
LT70130-40W 40 355.5 STEP IGES
LT70130-45W 45 384.7 STEP IGES
Select Height

Specification
