LT70

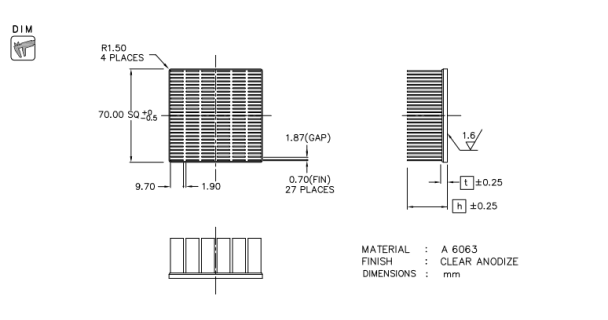

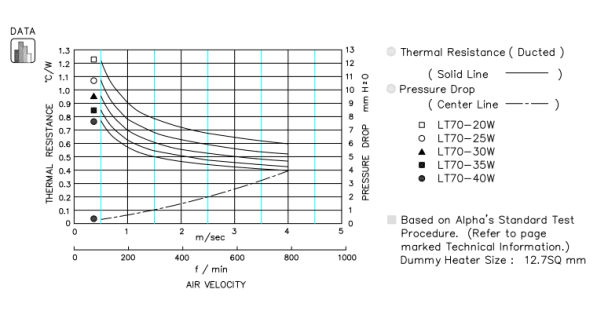

LT 70 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
LT70-20W 20 3 87.6 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LT70-25W 25 3.5 106.9 STEP IGES
LT70-30W 30 4 126.2 STEP IGES
LT70-35W 35 140.4 STEP IGES
LT70-40W 40 5 164.8 STEP IGES
Select Height

Specification
