LT90

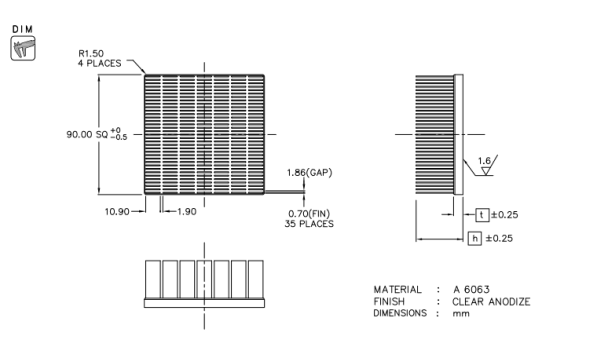

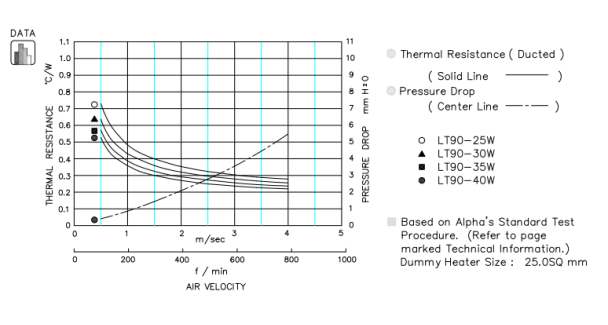

LT 90 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
LT90-25W 25 6 221.6 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
LT90-30W 30 245.6 STEP IGES
LT90-35W 35 7 286.5 STEP IGES
LT90-40W 40 310.5 STEP IGES
Select Height

Specification
