MD100

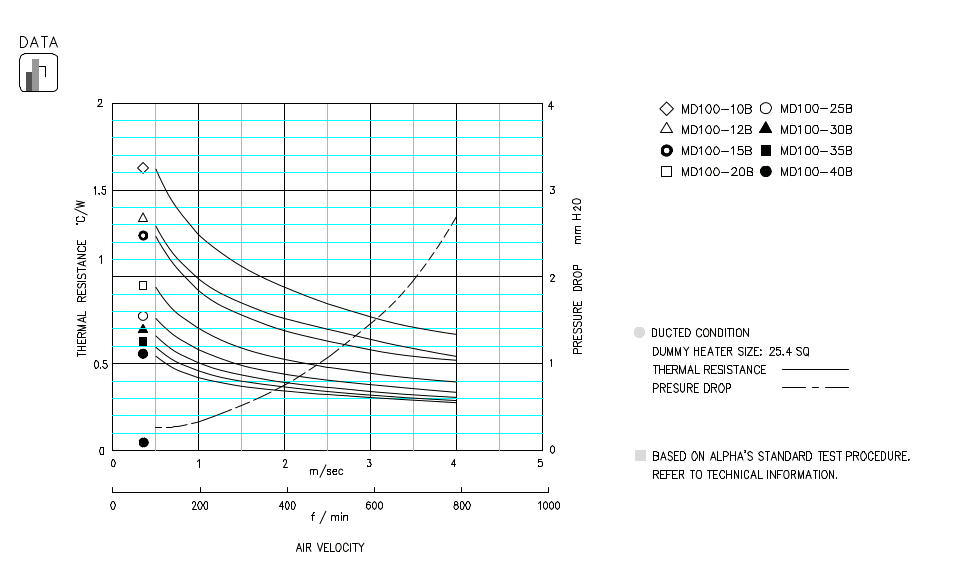

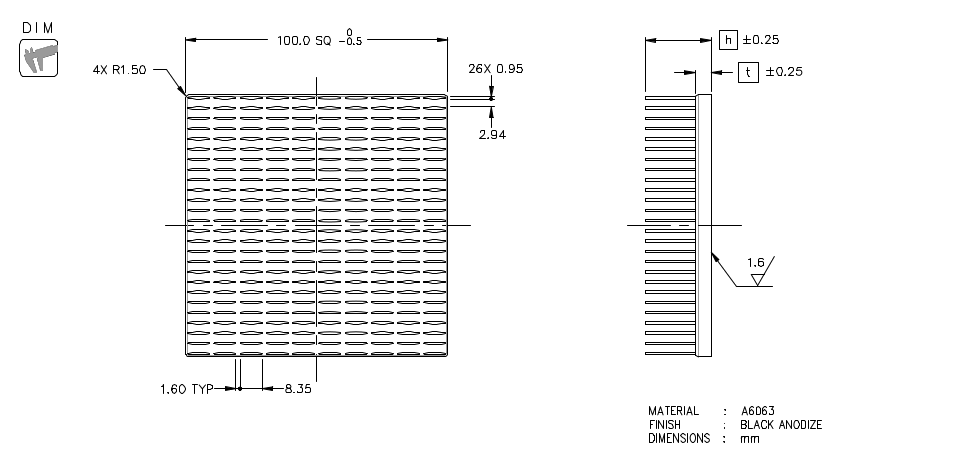

MD100 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
MD100-15B 15 6 196.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
MD100-20B 20 216.8 STEP IGES
MD100-25B 25 237.1 STEP IGES
MD100-30B 30 257.4 STEP IGES
Specification
