MD35

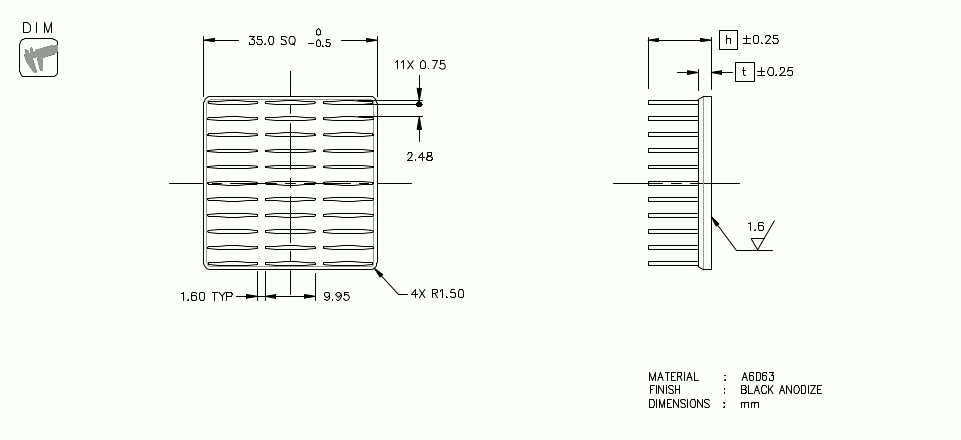

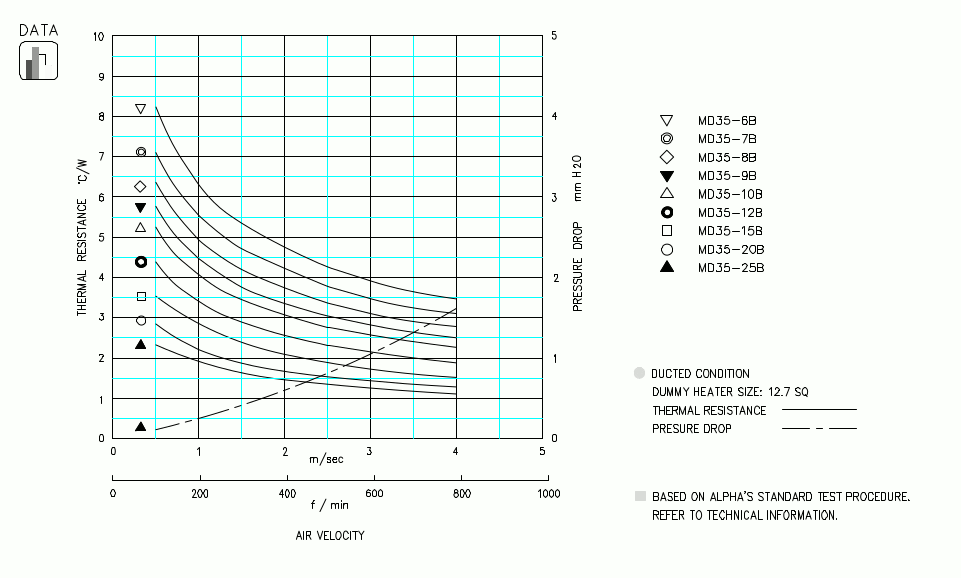

MD35 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
MD35-6B 6 2.0 8.7 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
MD35-7B 7 9.2 STEP IGES
MD35-8B 8 9.7 STEP IGES
MD35-9B 9 10.3 STEP IGES
MD35-10B 10 10.8 STEP IGES
MD35-12B 12 2.5 13.2 STEP IGES
MD35-15B 15 14.8 STEP IGES
MD35-20B 20 3.0 18.8 STEP IGES
MD35-25B 25 21.5 STEP IGES
Select Height
---
---

Specification
