MD45

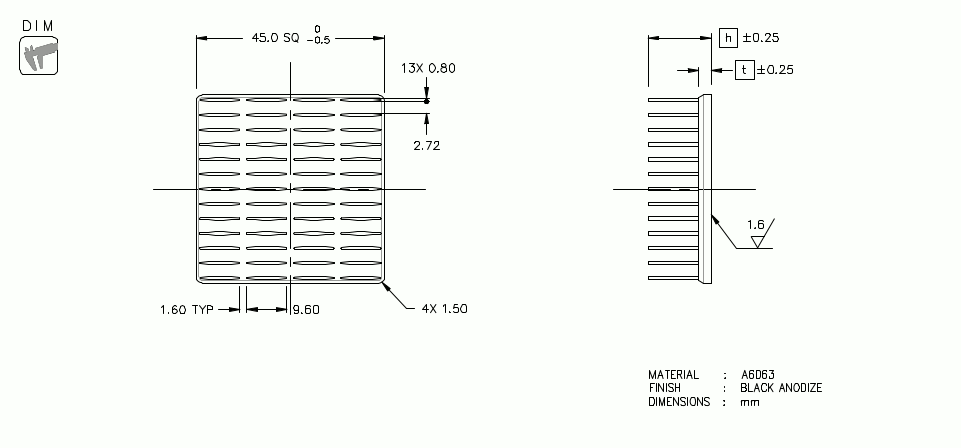

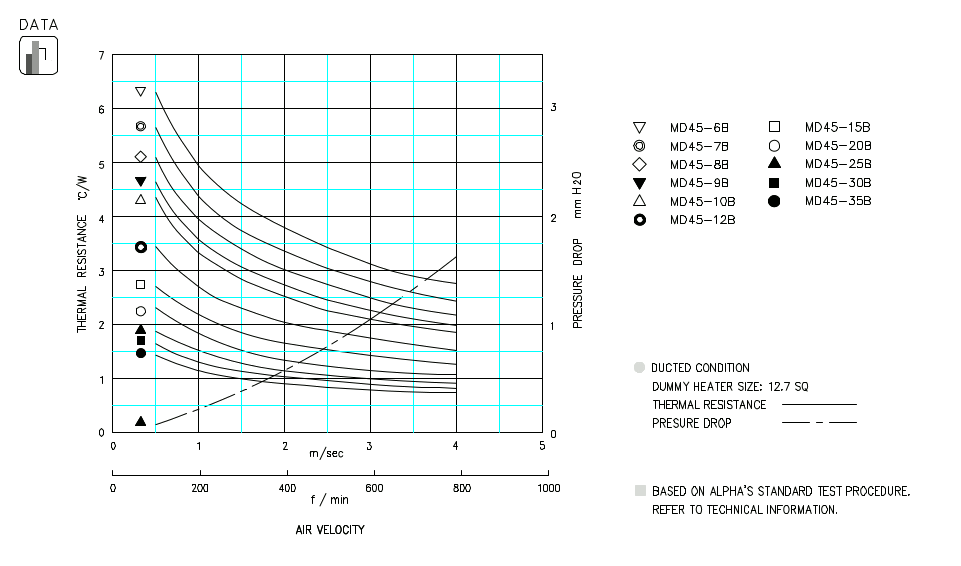

MD45 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
MD45-6B 6 2.5 16.3 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
MD45-7B 7 17.1 STEP IGES
MD45-8B 8 18.0 STEP IGES
MD45-9B 9 18.8 STEP IGES
MD45-10B 10 3.0 22.3 STEP IGES
MD45-12B 12 23.9 STEP IGES
MD45-15B 15 26.4 STEP IGES
MD45-20B 20 30.4 STEP IGES
MD45-25B 25 34.4 STEP IGES
Select Height
---
---

Specification
