MD54

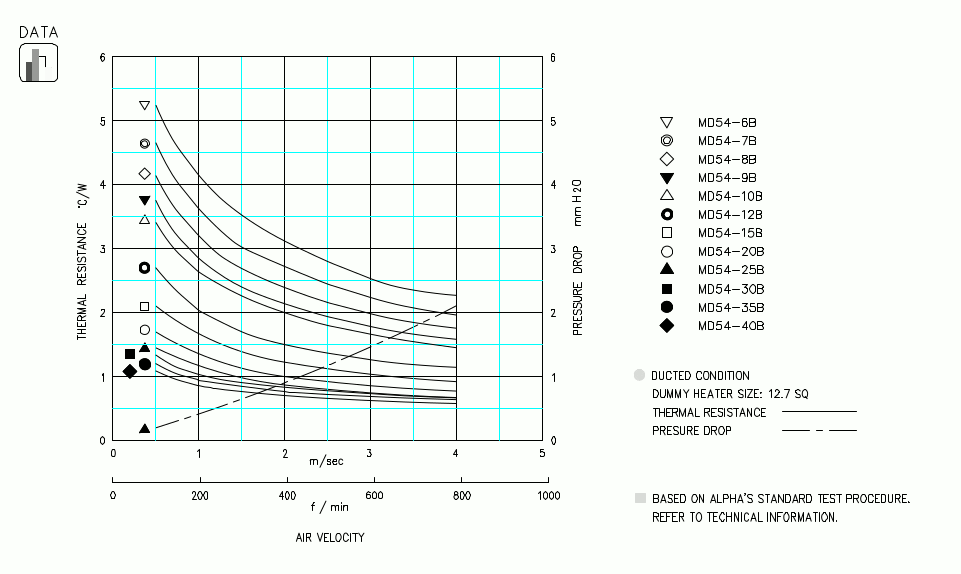

MD54 SPECIFICATION & THERMAL DATA

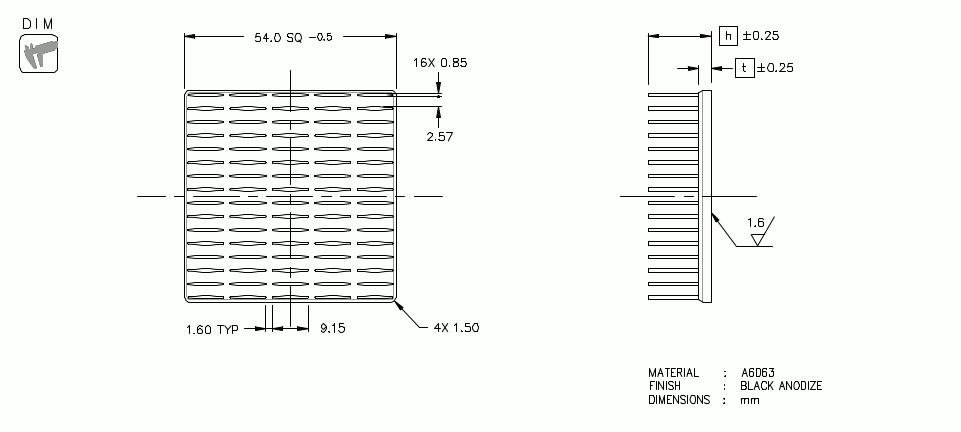

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
MD54-6B 6 3.0 26.9 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
MD54-7B 7 28.2 STEP IGES
MD54-8B 8 29.5 STEP IGES
MD54-9B 9 30.8 STEP IGES
MD54-10B 10 4.0 39.3 STEP IGES
MD54-12B 12 41.8 STEP IGES
MD54-15B 15 45.6 STEP IGES
MD54-20B 20 51.9 STEP IGES
MD54-25B 25 58.2 STEP IGES
Select Height
---
---

Specification
