MD70

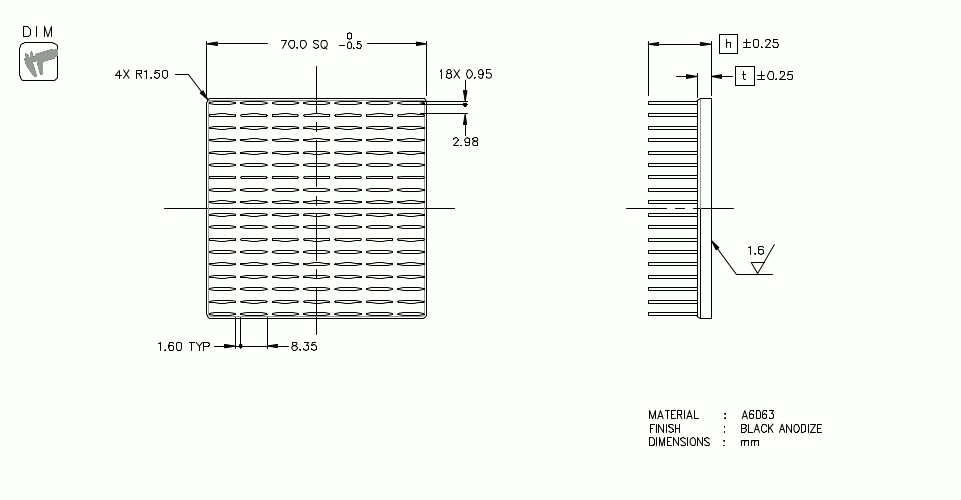

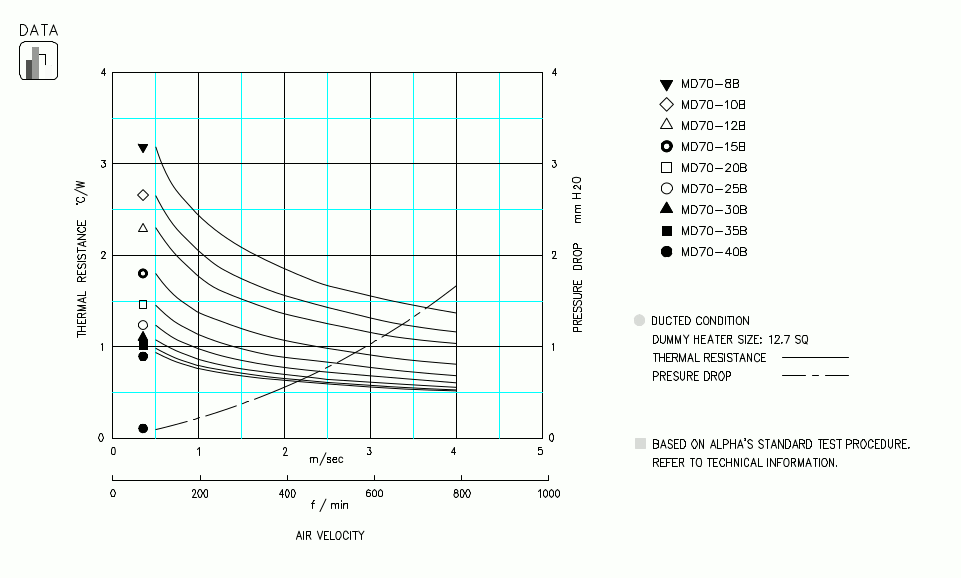

MD70 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
MD70-8B 8 3 49.6 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
MD70-10B 10 53.8 STEP IGES
MD70-12B 12 58.0 STEP IGES
MD70-15B 15 4.5 80.7 STEP IGES
MD70-20B 20 91.2 STEP IGES
MD70-25B 25 101.7 STEP IGES
MD70-30B 30 112.1 STEP IGES
MD70-35B 35 122.6 STEP IGES
MD70-40B 40 133.0 STEP IGES
Select Height

Specification
