N100

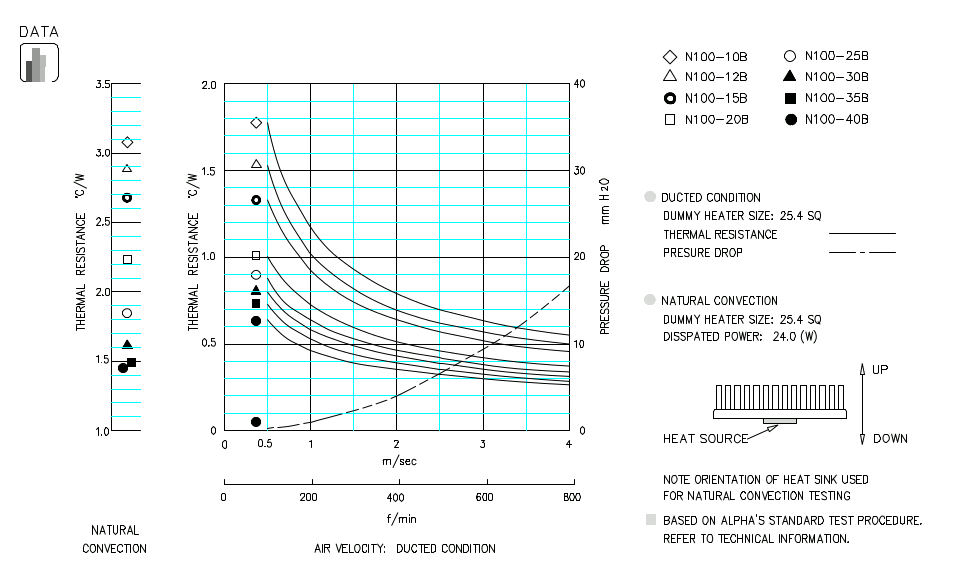

N100 SPECIFICATION & THERMAL DATA

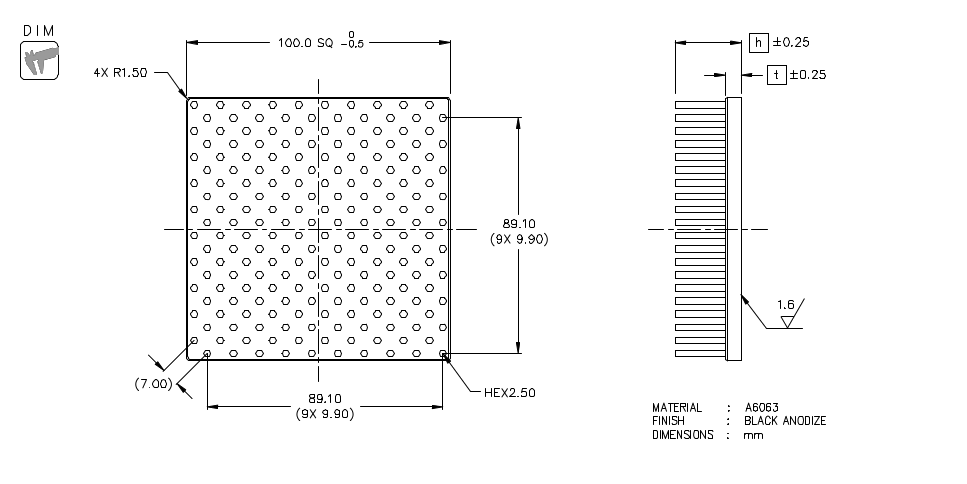

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N100-15B 15 6 187.3 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N100-20B 20 201.4 STEP IGES
N100-25B 25 215.4 STEP IGES
N100-30B 30 229.4 STEP IGES
N100-35B 35 243.4 STEP IGES
N100-40B 40 257.4 STEP IGES
Select Height

Specification
