Online Catalog

N13070

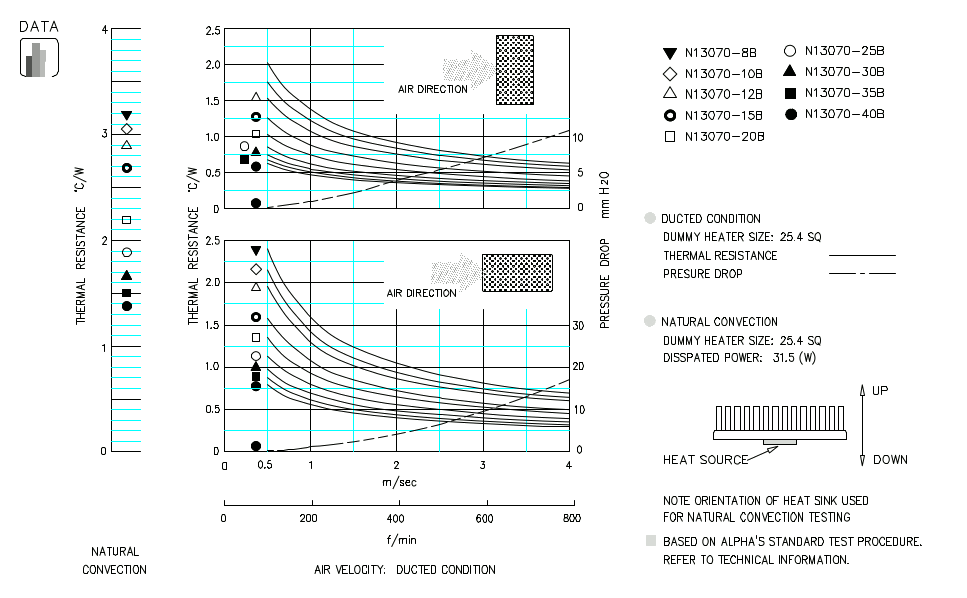

N13070 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N13070-12B 12 5 141.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N13070-15B 15 6 170.7 STEP IGES
N13070-20B 20 183.6 STEP IGES
N13070-25B 25 196.5 STEP IGES
N13070-30B 30 209.4 STEP IGES
N13070-35B 35 222.3 STEP IGES
N13070-40B 40 235.2 STEP IGES
Select Height

Specification
