Online Catalog

N30

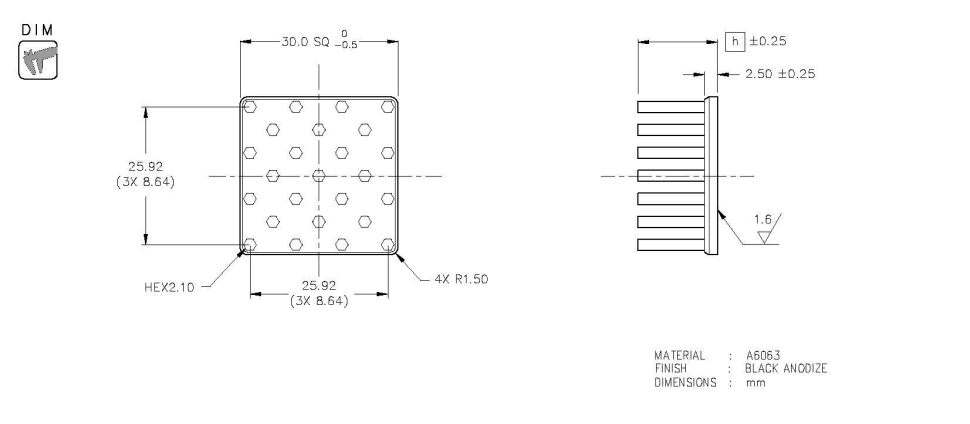

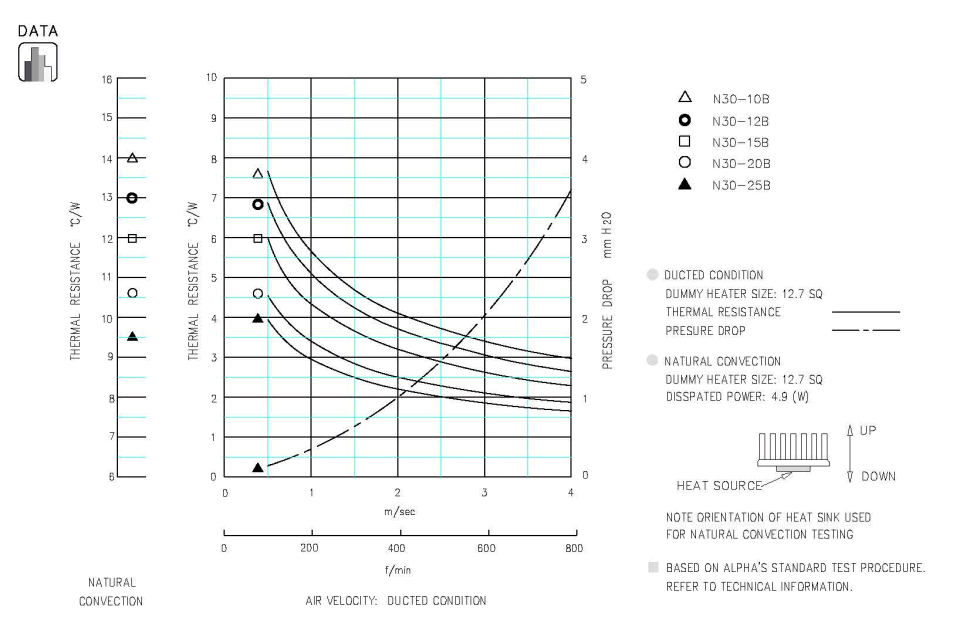

N30 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N30-10B 10 2.5 7.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N30-12B 12 8.4 STEP IGES
N30-15B 15 9.2 STEP IGES
N30-20B 20 10.6 STEP IGES
N30-25B 25 12.0 STEP IGES
Select Height
---
---

Specification
