N45

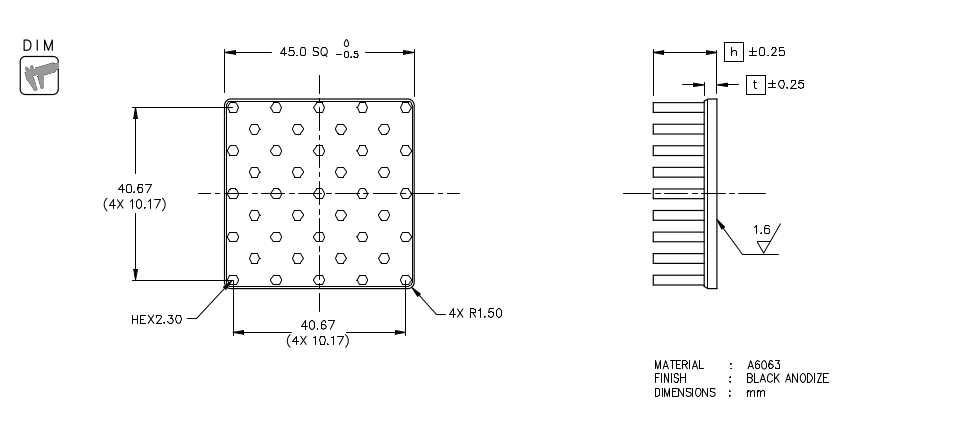

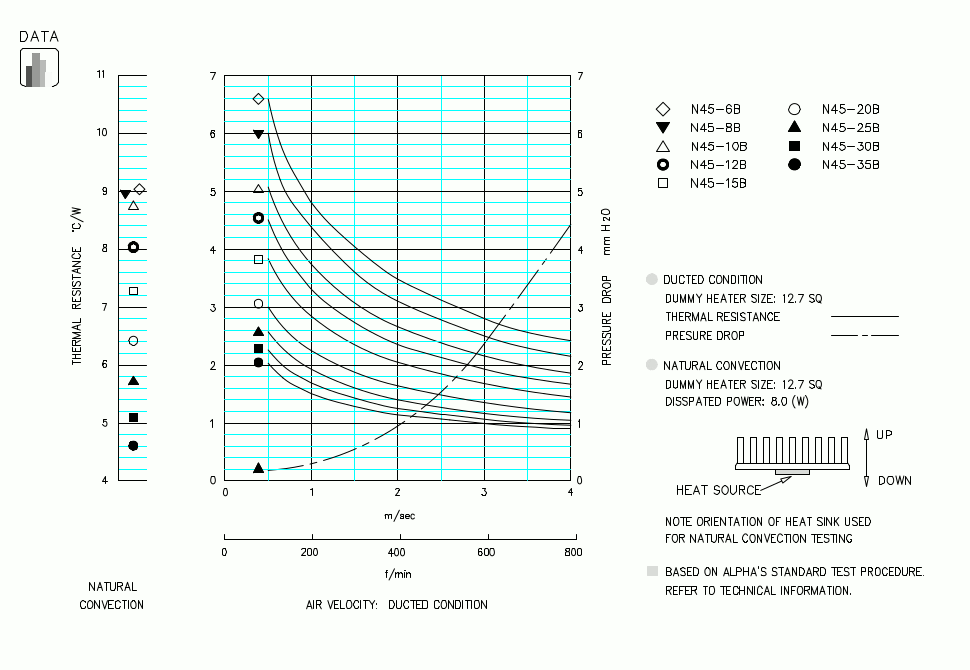

N45 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N45-10B 10 3.0 20.2 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N45-12B 12 21.2 STEP IGES
N45-15B 15 22.6 STEP IGES
N45-20B 20 25.0 STEP IGES
N45-25B 25 27.4 STEP IGES
Select Height
---
---

Specification
