N50

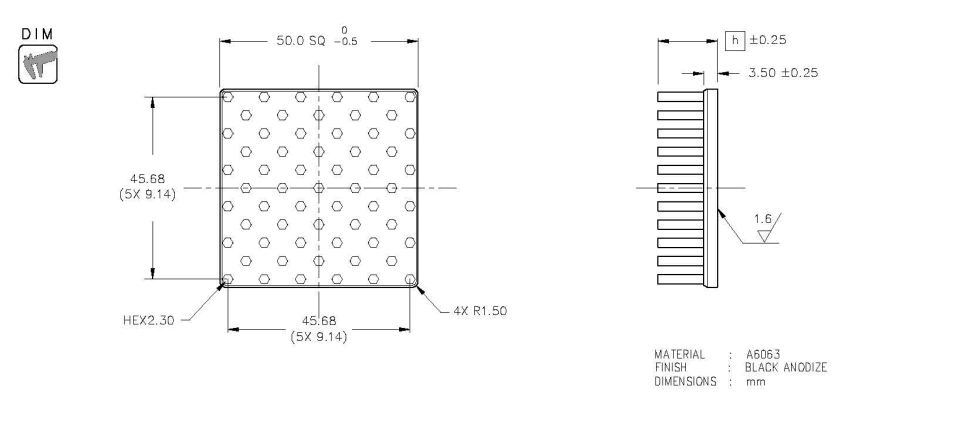

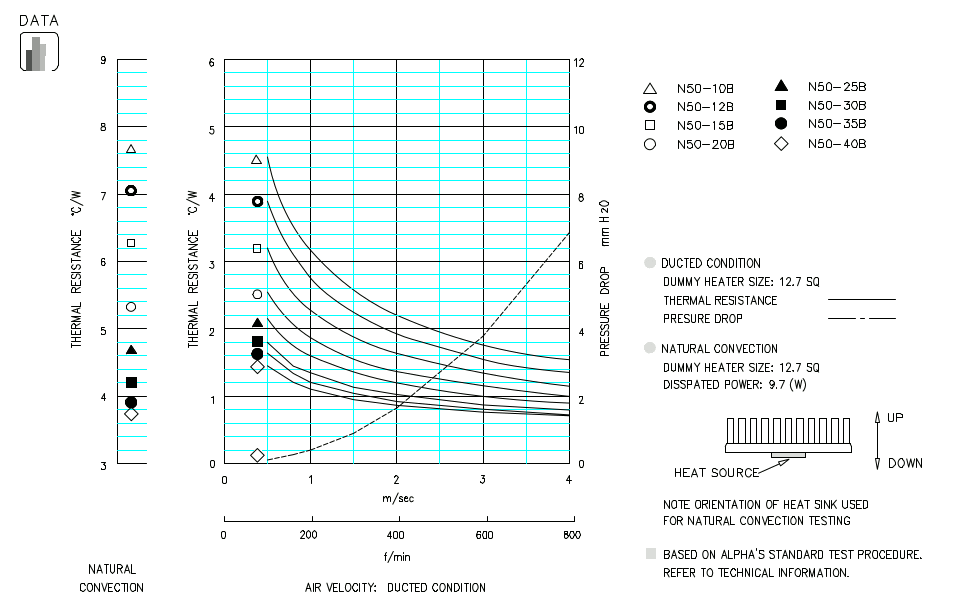

N50 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Download
(g)
Download Availability / Price / Order Option
N50-10B 10 3.5 28.9 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N50-12B 12 30.3 STEP IGES
N50-15B 15 32.4 STEP IGES
N50-20B 20 35.8 STEP IGES
N50-25B 25 39.4 STEP IGES
Select Height
---
---

Specification
