N54

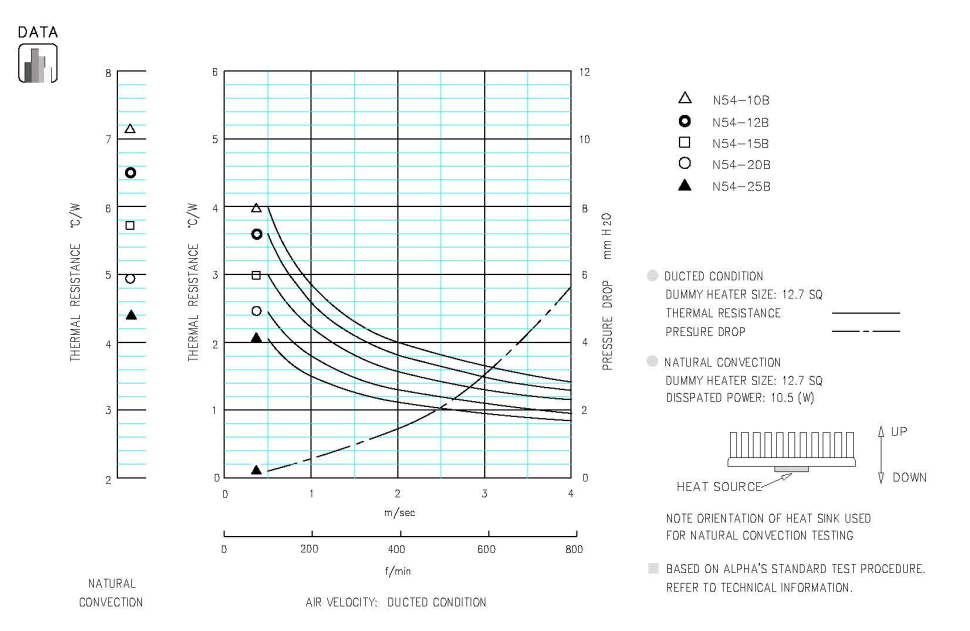

N54 SPECIFICATION & THERMAL DATA

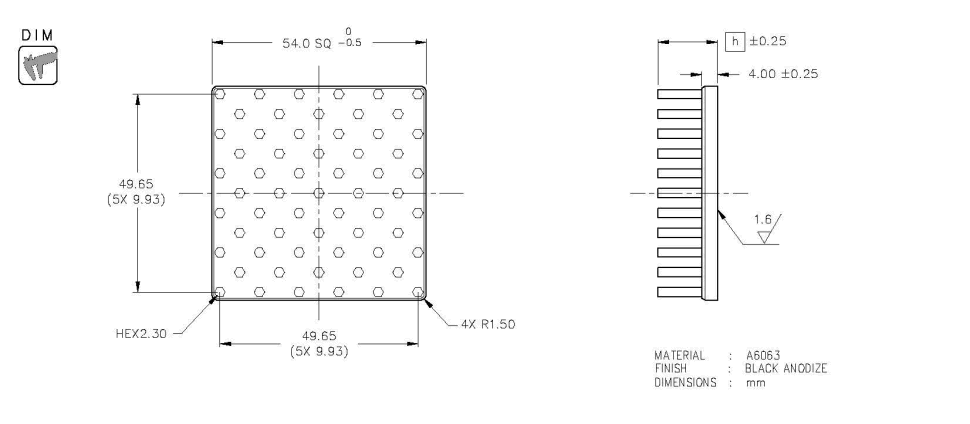

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N54-10B 10 4.0 36.4 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N54-12B 12 37.8 STEP IGES
N54-15B 15 39.9 STEP IGES
N54-20B 20 43.5 STEP IGES
N54-25B 25 46.8 STEP IGES
Select Height
---
---

Specification
