N60

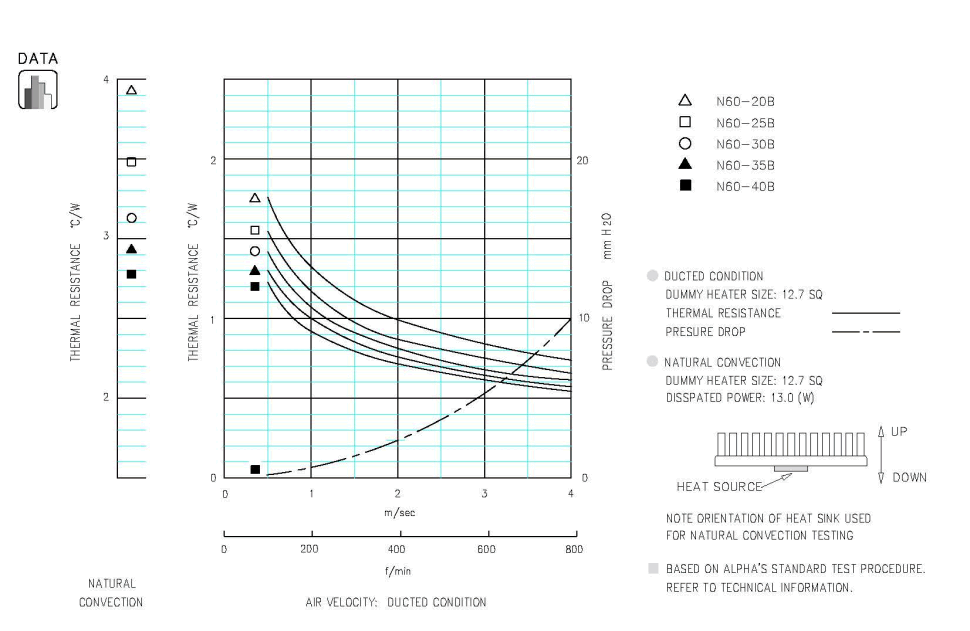

N60 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N60-20B 20 4.0 57.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N60-25B 25 62.5 STEP IGES
N60-30B 30 68.0 STEP IGES
N60-35B 35 73.5 STEP IGES
N60-40B 40 79.0 STEP IGES
Select Height
---
---

Specification
