N80

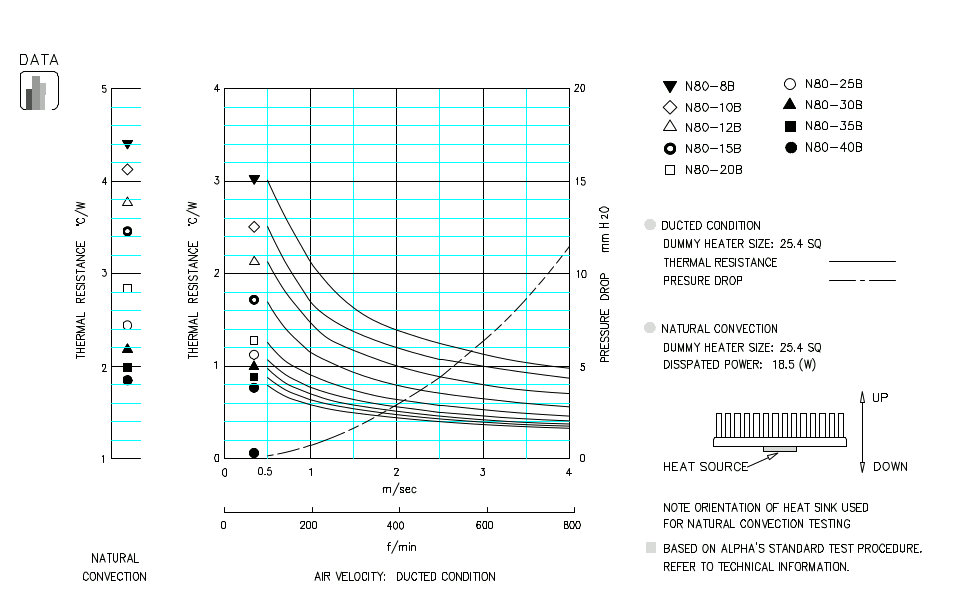

N80 SPECIFICATION & THERMAL DATA

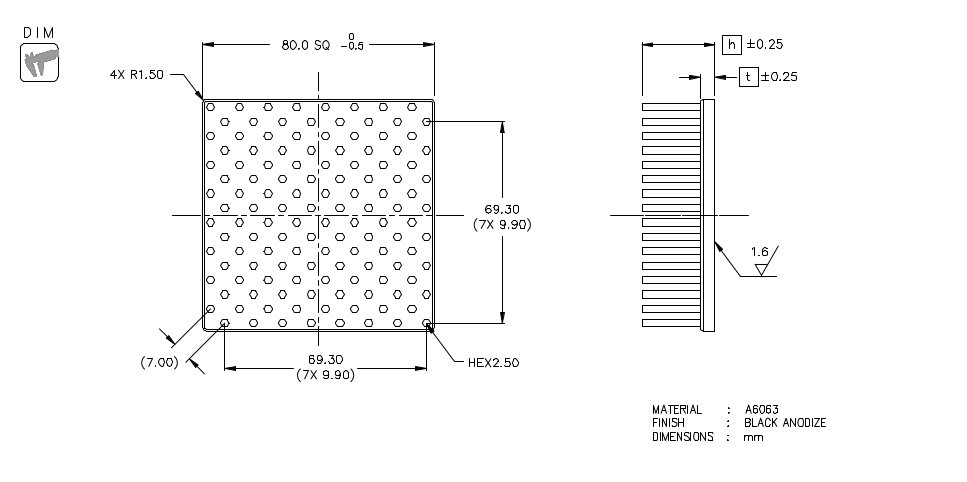

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N80-20B 20 5.0 114.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N80-25B 25 123.75 STEP IGES
N80-30B 30 133.0 STEP IGES
N80-35B 35 142.25 STEP IGES
N80-40B 40 151.5 STEP IGES
Specification
