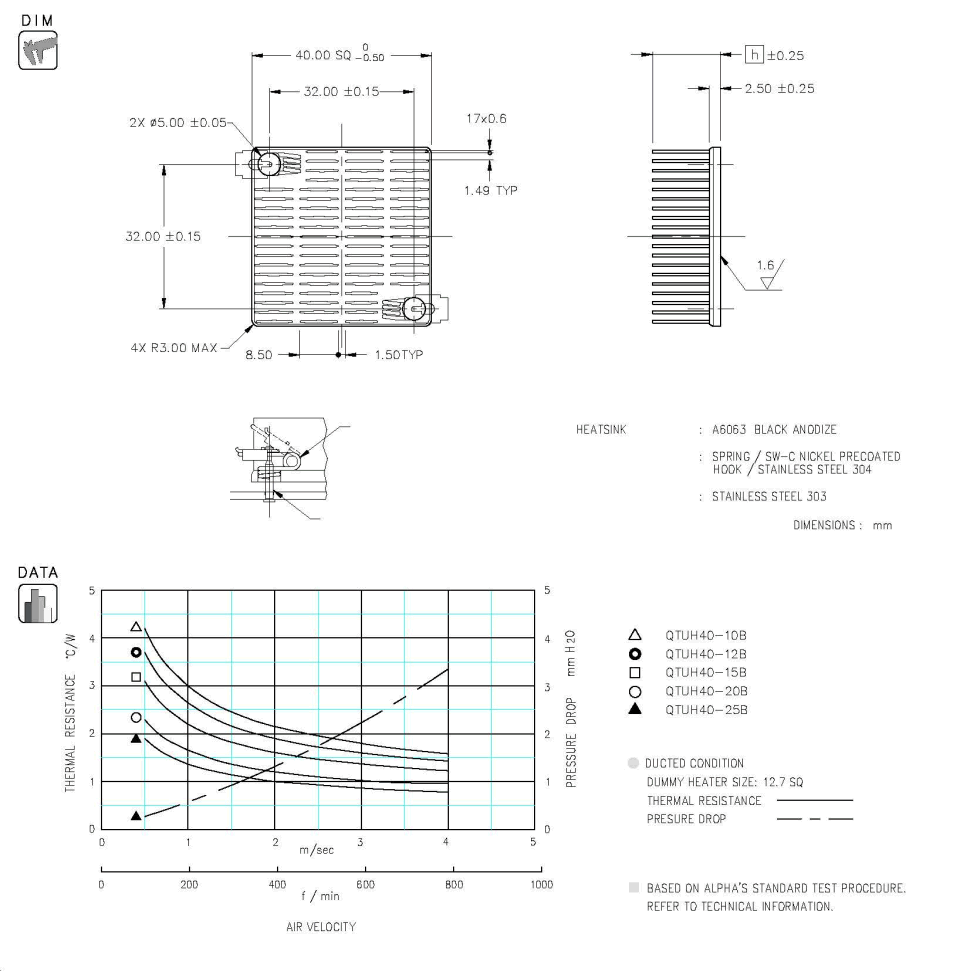

|Heat Sink Height (h)|
|Torsion spring||Anchor pin|
We can offer customization (including hole location) for the QT series.
If a custom heatsink is required, please choose the base heatsink and provide customization details to sales.
|No thermal interface required|
The thermal interface materials listed here are phase change materials (PCMs).
These PCMs are naturally tacky and will be pre-applied to the heat sink.
However, PCMs may peel-off from the heat sink base when removing the release
liner prior to heat sink installation.
Since PCMs rely on their natural tackiness instead of an adhesive, this can happen.
In light of this, we recommend that our customers apply additional pressure to the PCMs
prior to removing the protective liner to allow the PCMs to wet out on the heat
sink surface (refer to instruction item #4 below).
Storage and Handling Instruction
