QTUM35

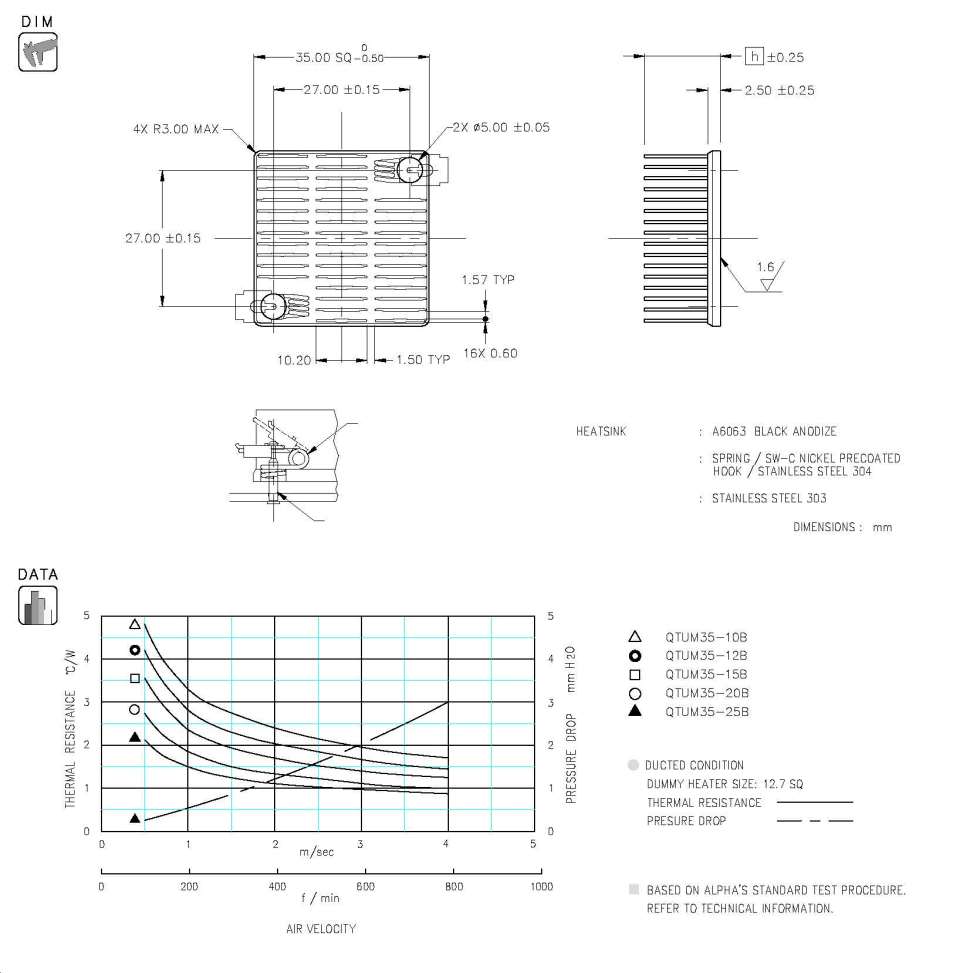

QTUM35 SPECIFICATION & THERMAL DATA

Model name :
QTUM35-
B
-
Heat Sink Height (h)
10 mm
12 mm
15 mm
20 mm
25 mm
Other height
Dimension : mm
Torsion spring Anchor pin
  • Heat sinks and torsion springs can be purchased as assembled parts only, not separately.
  • For ordering the individual components, like anchor pin or thermal interface, please visit each link.
  • Request Customization

    We can offer customization (including hole location) for the QT series.
    If a custom heatsink is required, please choose the base heatsink and provide customization details to sales.

 Thermal Interface
-- --
No thermal interface required

Note

The thermal interface materials listed here are phase change materials (PCMs). These PCMs are naturally tacky and will be pre-applied to the heat sink. However, PCMs may peel-off from the heat sink base when removing the release liner prior to heat sink installation. Since PCMs rely on their natural tackiness instead of an adhesive, this can happen. In light of this, we recommend that our customers apply additional pressure to the PCMs prior to removing the protective liner to allow the PCMs to wet out on the heat sink surface (refer to instruction item #4 below).

Storage and Handling Instruction

Dimension and Thermal Data Board keepout patterns and load chart
