S1510

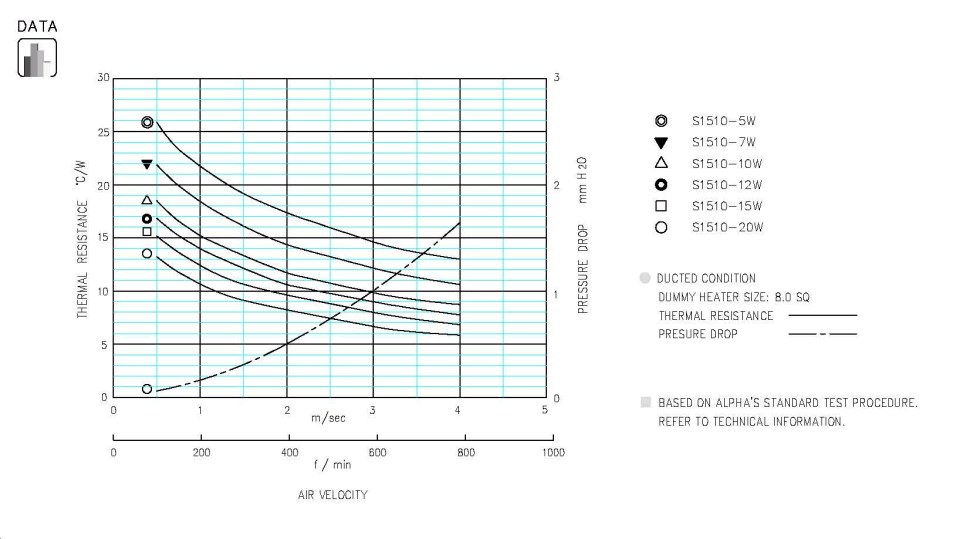

S1510 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
S1510-5W 5 2.0 0.65 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
S1510-7W70.75STEPIGES
S1510-10W100.90STEPIGES
S1510-12W121.00STEPIGES
S1510-15W151.15STEPIGES
S1510-20W201.40STEPIGES
Select Height
---
---

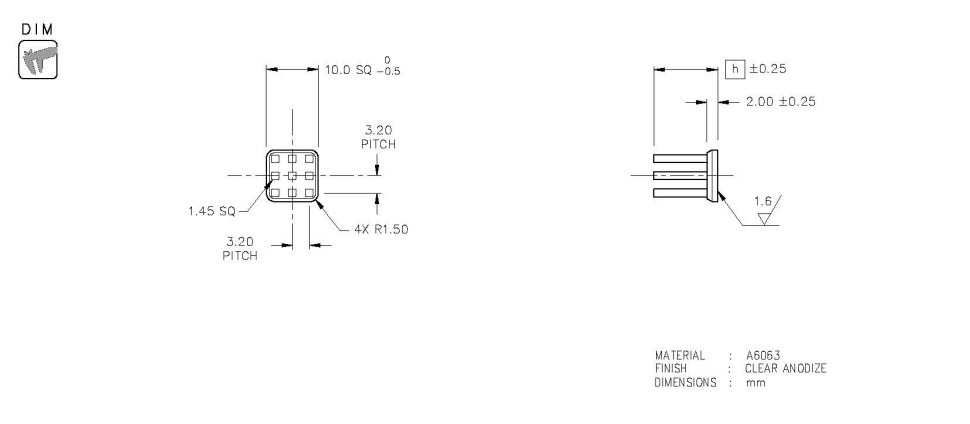

Dimension :mm

Specification
