S1525

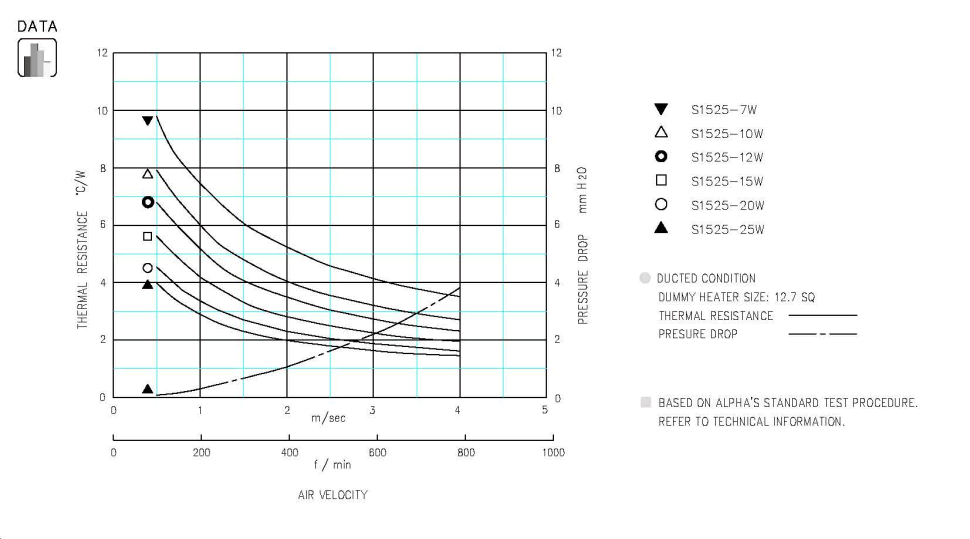

S1525 SPECIFICATION & THERMAL DATA

Specification
  MODEL HEIGHT
(h)
BASE
(t)
WEIGHT
(grams)
Download Price / Online Shopping Option
S1525-7W 7 2.0 5.0 catalog
PDF


RoHS
RoHS


REACH
REACH


DXF
DXF
STEP IGES
Quantity pcs.
Introduce attachment option for the heat sink.
S1525-10W105.7STEPIGES
S1525-12W126.2STEPIGES
S1525-15W157.0STEPIGES
S1525-20W208.3STEPIGES
S1525-25W259.6STEPIGES
Select Height
---
---

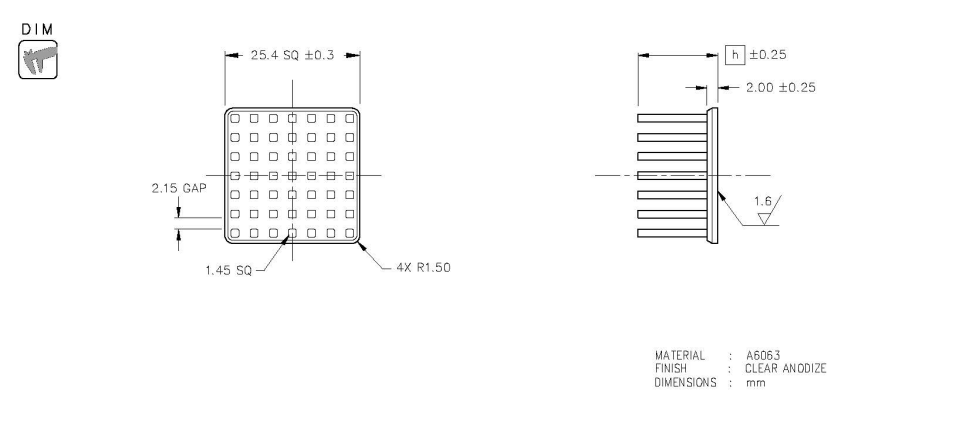

Dimension :mm

Specification
