S1530

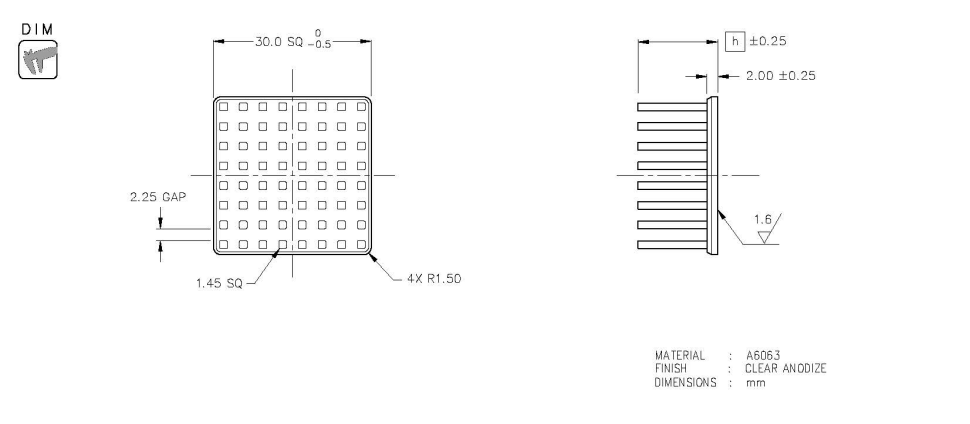

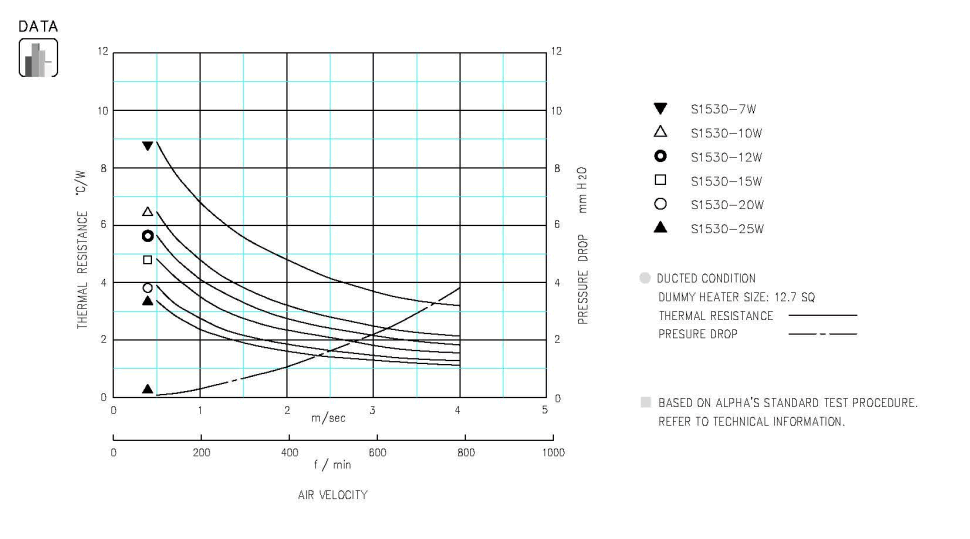

S1530 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
S1530-7W 7 2.0 6.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1530-10W 10 7.6 STEP IGES
S1530-12W 12 8.3 STEP IGES
S1530-15W 15 9.4 STEP IGES
S1530-20W 20 11.2 STEP IGES
S1530-25W 25 13.0 STEP IGES
Select Height
---
---

Specification
