S1535

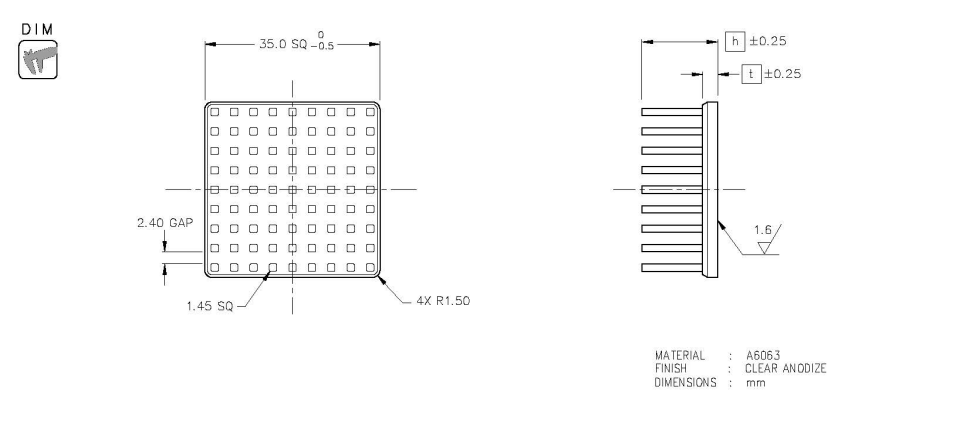

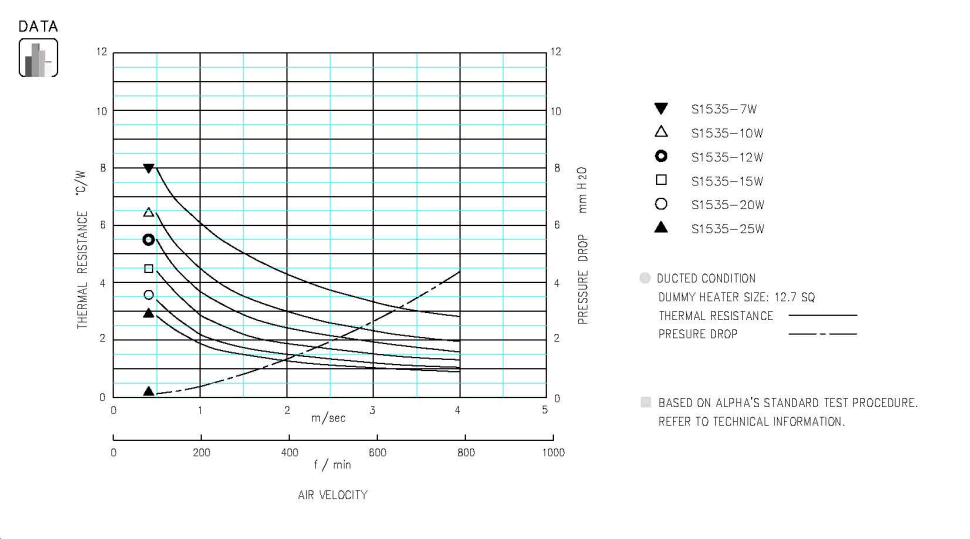

S1535 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S1535-7W 7 2.0 9.1 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1535-10W 10 3.0 12.9 STEP IGES
S1535-12W 12 13.8 STEP IGES
S1535-15W 15 15.1 STEP IGES
S1535-20W 20 17.3 STEP IGES
S1535-25W 25 19.5 STEP IGES
Select Height
---
---

Specification
