S1540

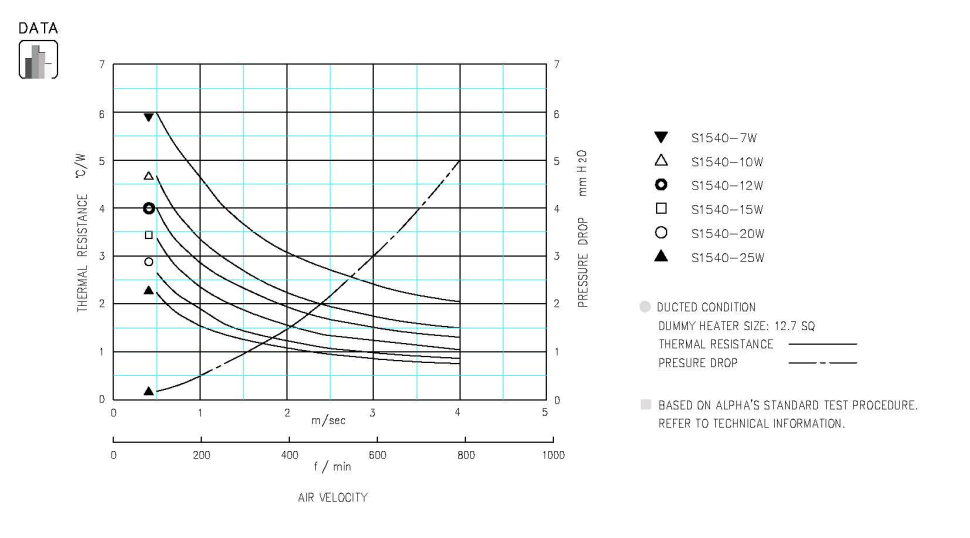

S1540 SPECIFICATION & THERMAL DATA

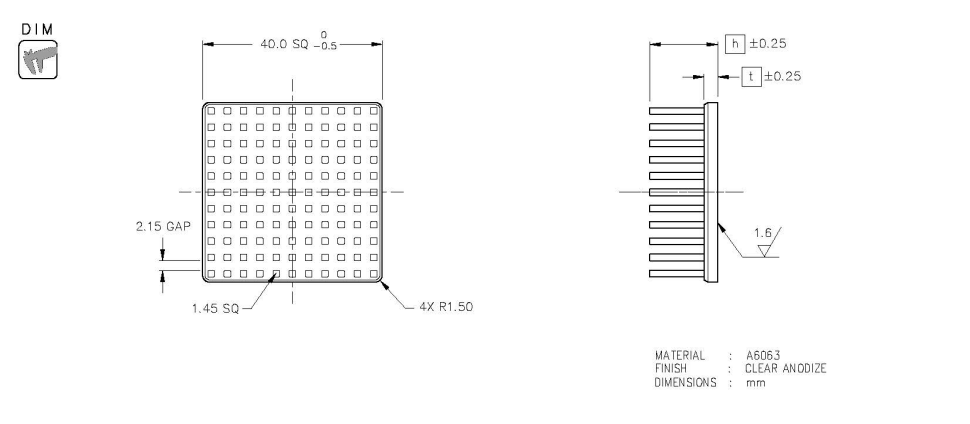

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S1540-7W 7 2.0 12.3 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1540-10W 10 14.0 STEP IGES
S1540-12W 12 3.0 18.9 STEP IGES
S1540-15W 15 21.0 STEP IGES
S1540-20W 20 24.5 STEP IGES
S1540-25W 25 3.5 30.0 STEP IGES
Select Height
---
---

Specification
