S1550

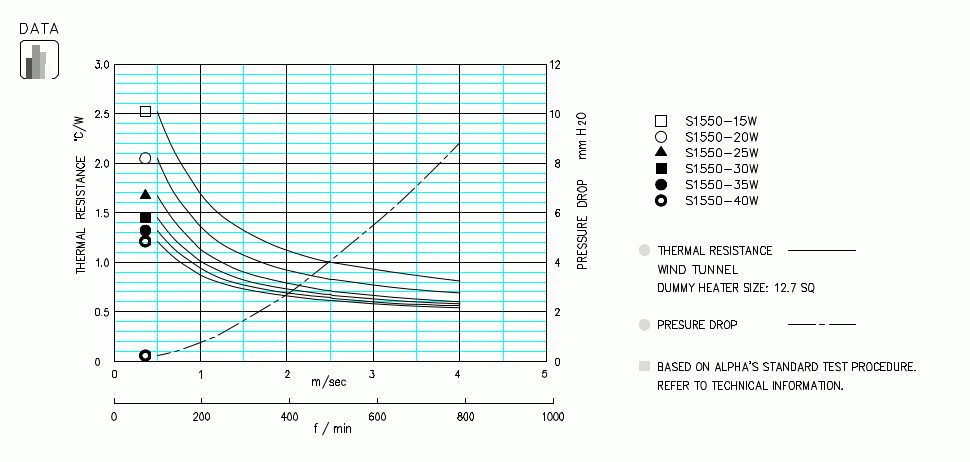

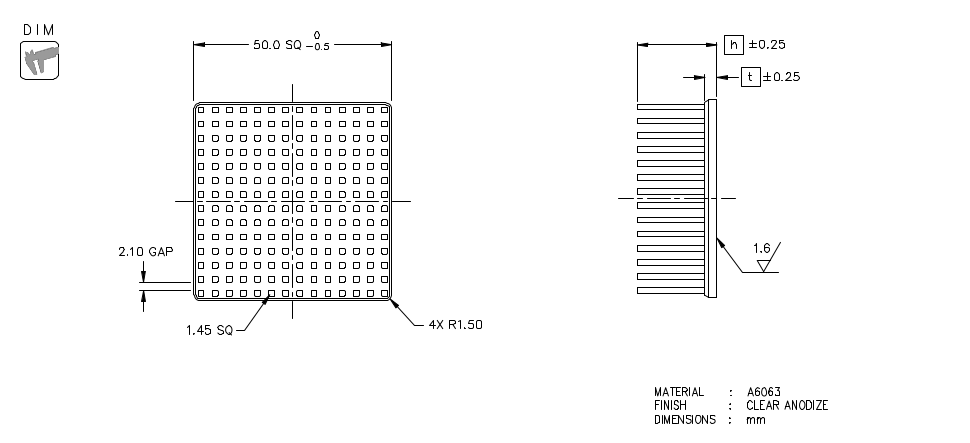

S1550 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S1550-15W 15 3.0 32.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1550-20W 20 38.0 STEP IGES
S1550-25W 25 3.5 46.5 STEP IGES
Select Height
---
---

Specification
