Online Catalog

S1560

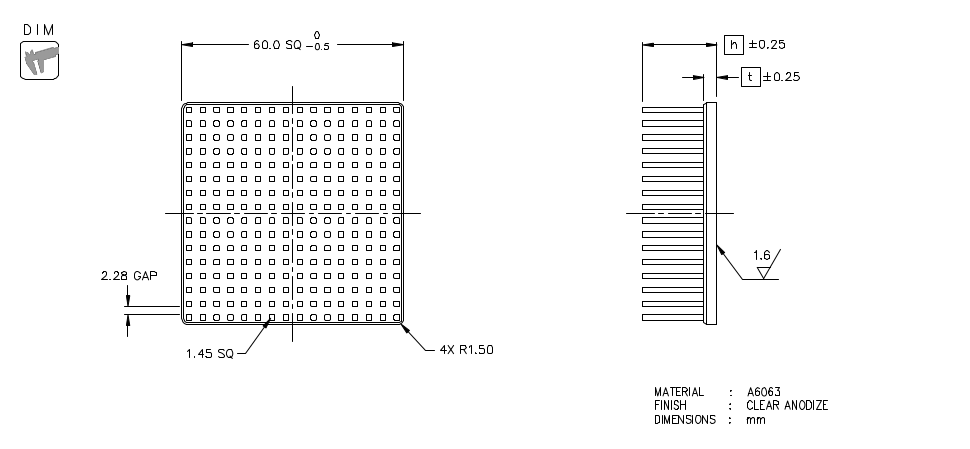

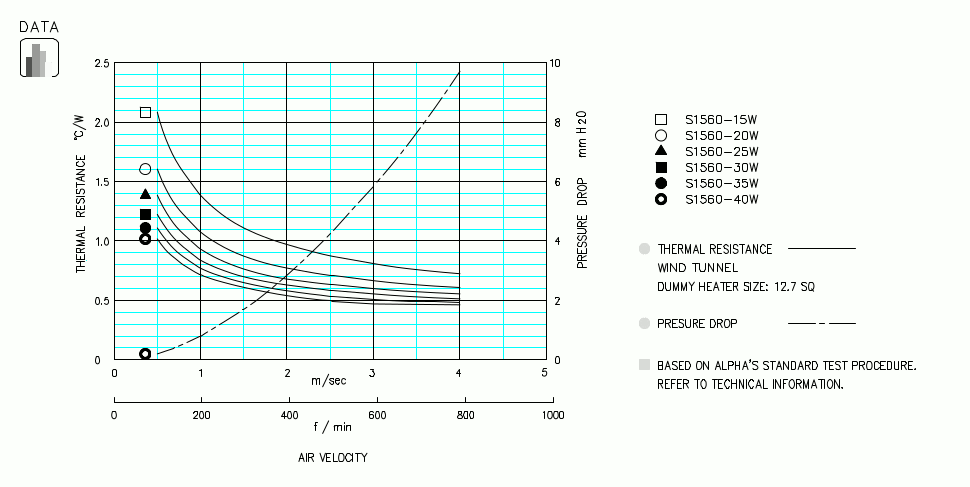

S1560 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S1560-15W 15 3.0 44.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1560-20W 20 50.5 STEP IGES
S1560-25W 25 3.5 61.0 STEP IGES
S1560-30W 30 4.0 70.5 STEP IGES
Select Height
---
---

Specification
