S1570

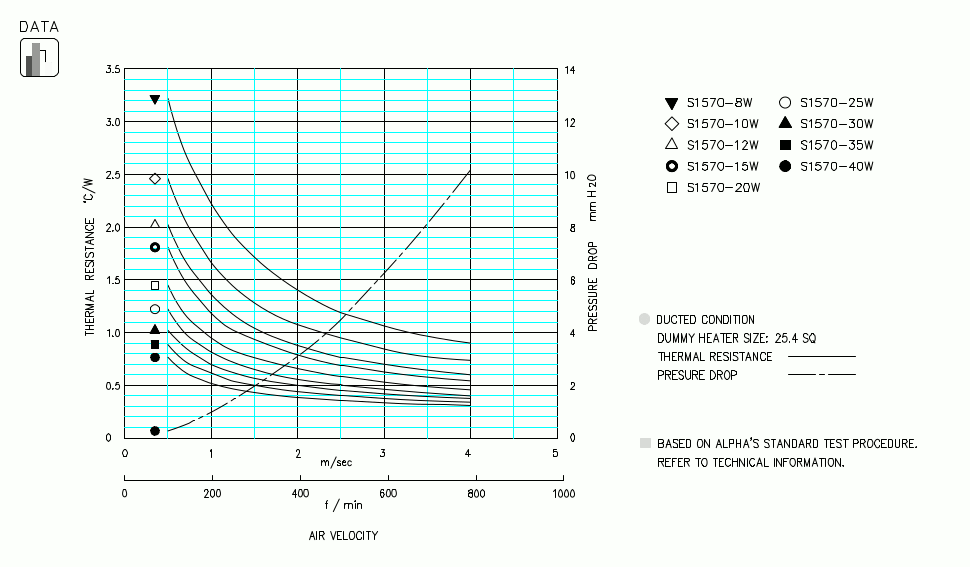

S1570 SPECIFICATION & THERMAL DATA

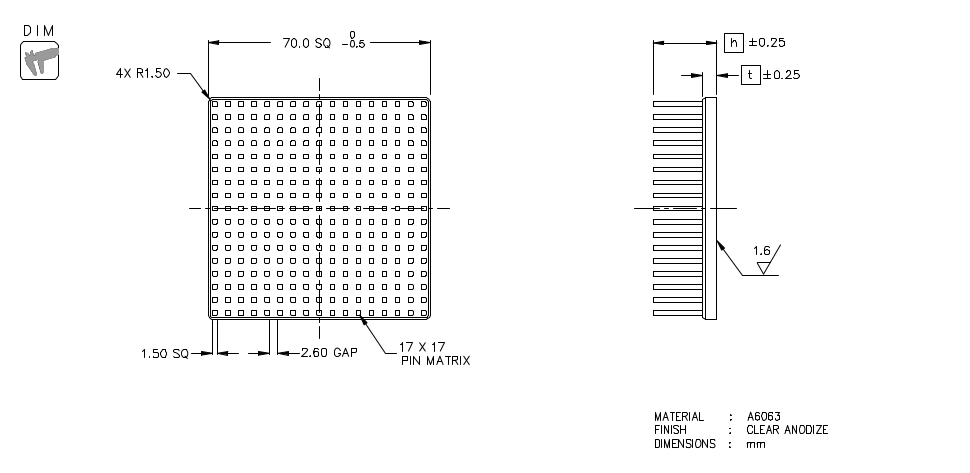

Specification
  Model Height
h (mm)
BASE(t)

Weight
(g)
Download Availability / Price / Order Option
S1570-8W 8 3 47.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1570-10W 10 51.2 STEP IGES
S1570-12W 12 54.7 STEP IGES
S1570-15W 15 4.5 76.9 STEP IGES
S1570-20W 20 85.5 STEP IGES
S1570-25W 25 94.1 STEP IGES
S1570-30W 30 102.7 STEP IGES
Select Height
