S20100

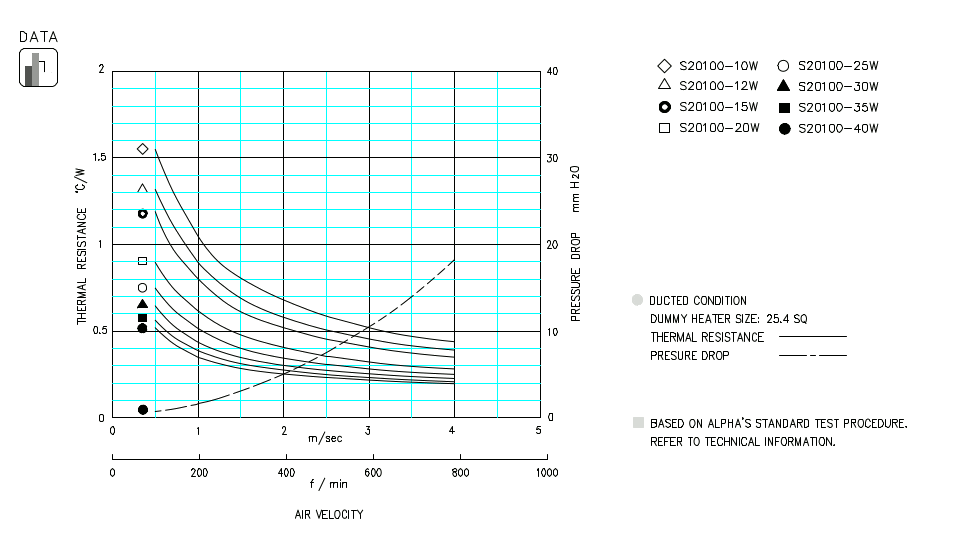

S20100 SPECIFICATION & THERMAL DATA

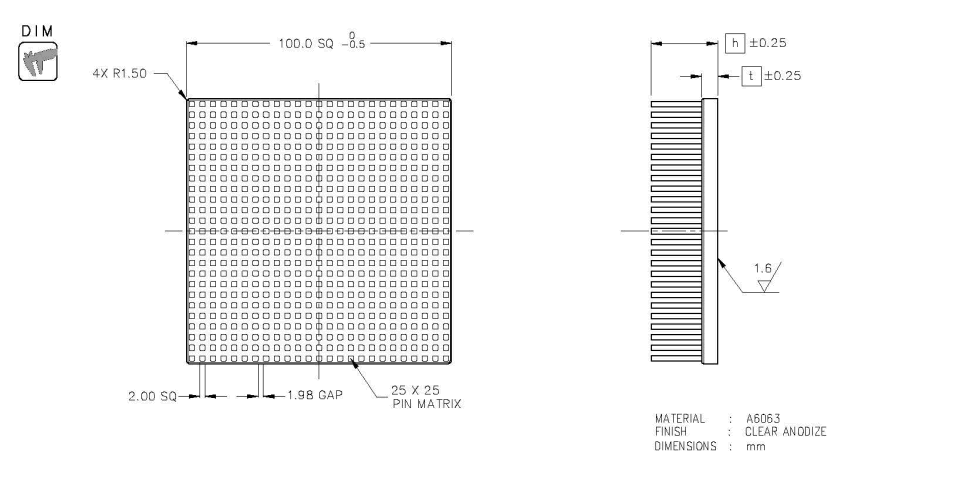

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S20100-15W 15 6 221.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S20100-20W 20 261.0 STEP IGES
S20100-25W 25 294.0 STEP IGES
S20100-30W 30 327.0 STEP IGES
S20100-35W 35 7 380.0 STEP IGES
S20100-40W 40 413.0 STEP IGES
Select Height

Specification
