S2080

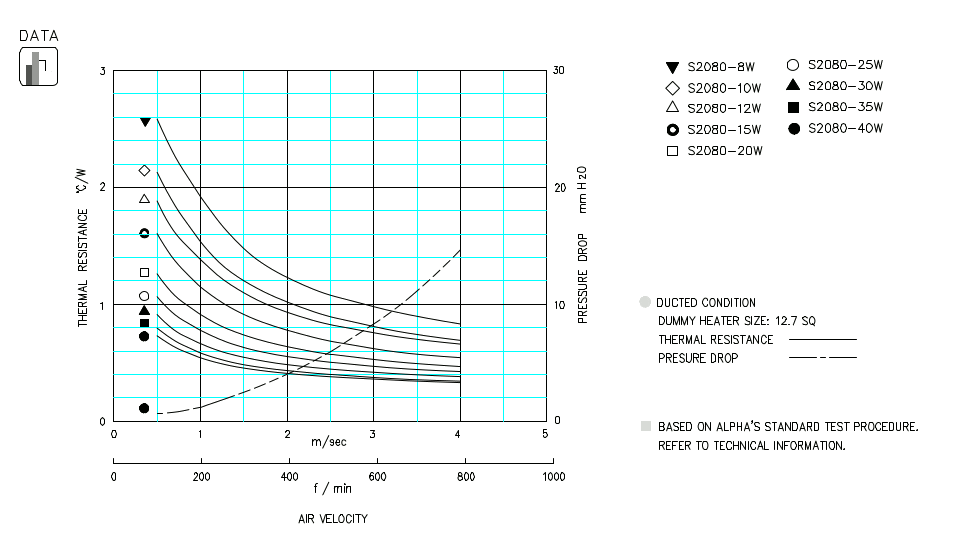

S2080 SPECIFICATION & THERMAL DATA

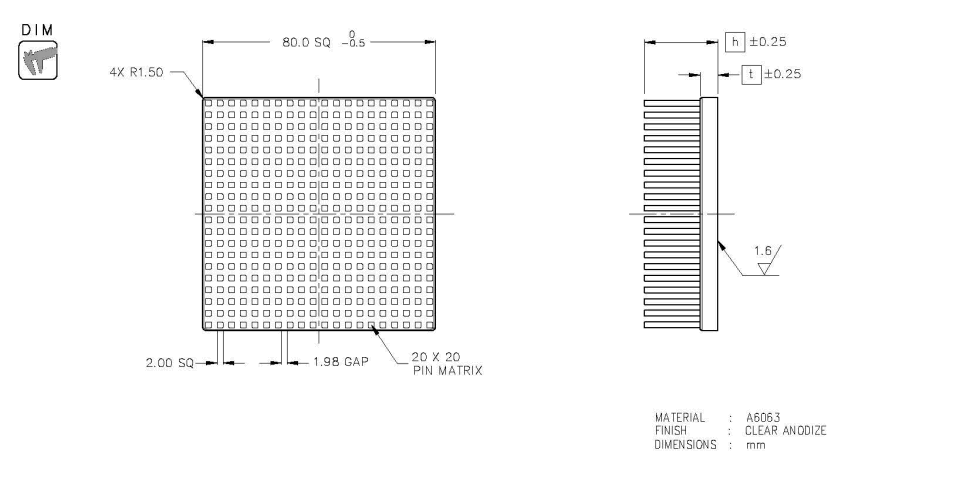

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S2080-12W 12 4 102.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S2080-15W 15 6 141.0 STEP IGES
S2080-20W 20 162.0 STEP IGES
S2080-25W 25 183.0 STEP IGES
S2080-30W 30 204.0 STEP IGES
S2080-35W 35 7 238.0 STEP IGES
S2080-40W 40 259.0 STEP IGES
Select Height

Specification
