S2090

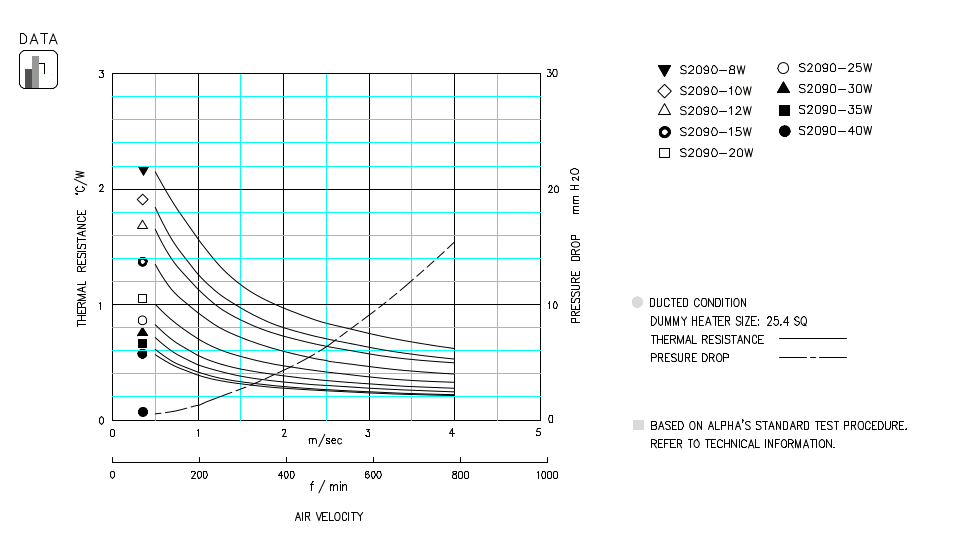

S2090 SPECIFICATION & THERMAL DATA

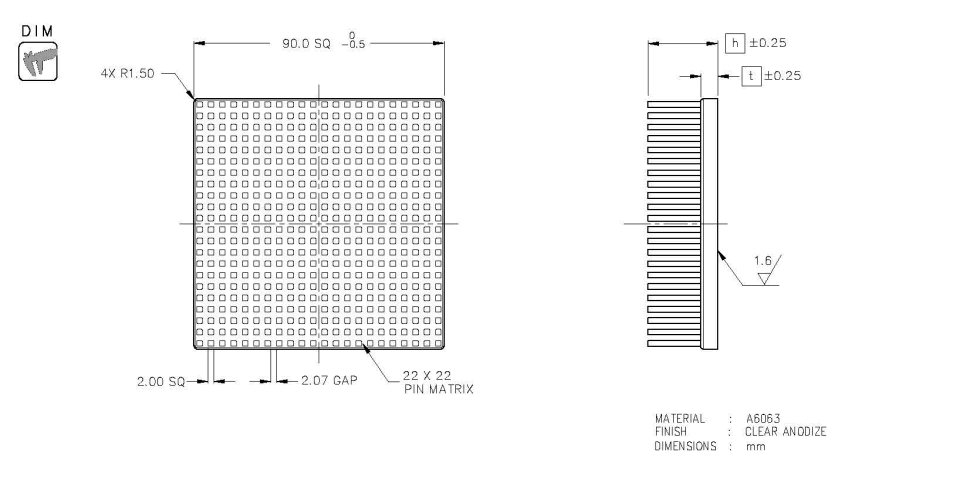

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
S2090-20W 20 6 202.0 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S2090-25W 25 227.5 STEP IGES
S2090-30W 30 253.0 STEP IGES
S2090-35W 35 7 295.0 STEP IGES
S2090-40W 40 320.5 STEP IGES
Specification
