ST30

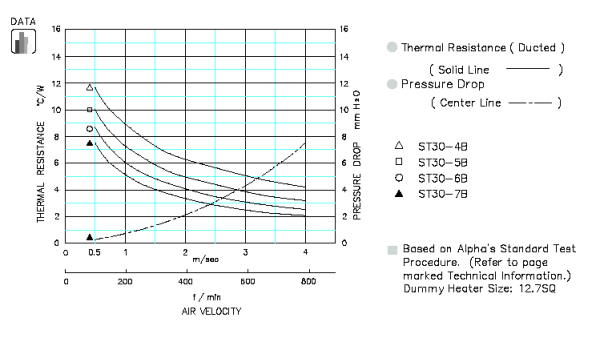

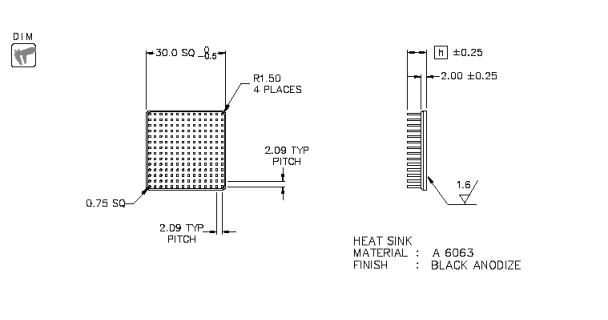

ST30 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ST30-4B 4 2.0 5.4 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ST30-5B 5 5.7 STEP IGES
ST30-6B 6 6.0 STEP IGES
ST30-7B 7 6.2 STEP IGES
Specification
