ST35

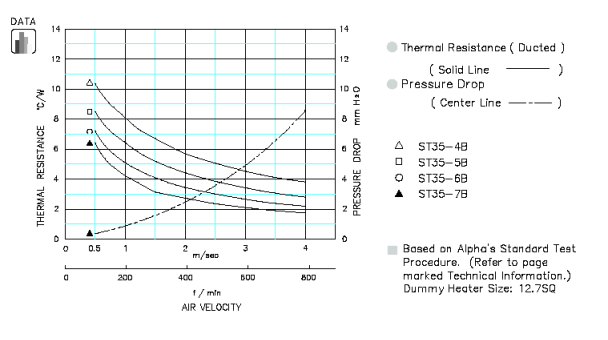

ST35 SPECIFICATION & THERMAL DATA

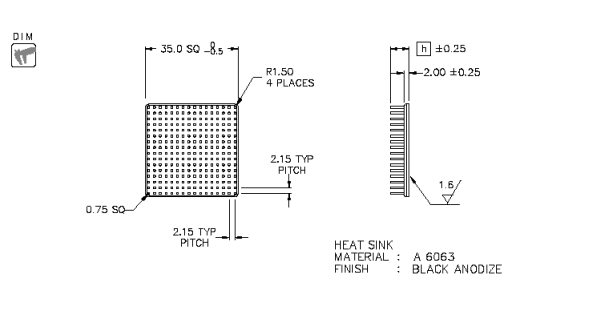

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ST35-4B 4 2.0 7.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ST35-5B 5 7.8 STEP IGES
ST35-6B 6 8.2 STEP IGES
ST35-7B 7 8.5 STEP IGES
Specification
